element <relativePaymentDates> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
CommodityRelativePaymentDates
Content:
complex, 1 attribute, 8 elements
Defined:
locally witnin CommodityPaymentDates.model group in fpml-com-5-5.xsd; see XML source

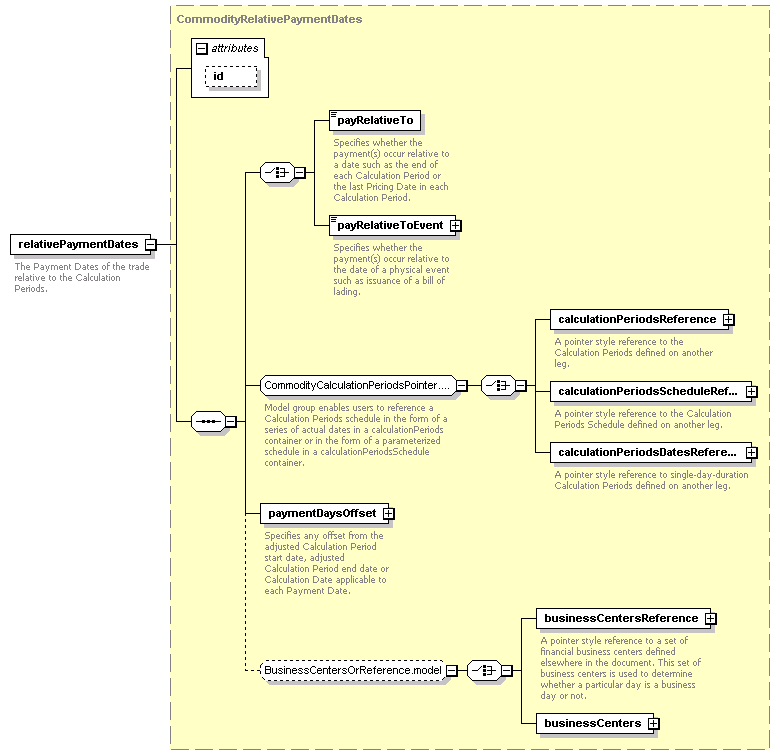

Content Model Diagram
XML Representation Summary
<relativePaymentDates

id
 =
 xsd:ID
    >

Content:
 (payRelativeTo | payRelativeToEvent), (calculationPeriodsReference | calculationPeriodsScheduleReference | calculationPeriodsDatesReference), paymentDaysOffset, (businessCentersReference | businessCenters)?
</relativePaymentDates>
Content model elements (8):
businessCenters (defined in BusinessCentersOrReference.model group),
businessCentersReference,
calculationPeriodsDatesReference,
calculationPeriodsReference,
calculationPeriodsScheduleReference,
paymentDaysOffset (defined in CommodityRelativePaymentDates complexType),
payRelativeTo (defined in CommodityRelativePaymentDates complexType),
payRelativeToEvent
Included in content model of elements (6):
averagePriceLeg, fixedLeg,
Annotation
The Payment Dates of the trade relative to the Calculation Periods.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="relativePaymentDates" type="CommodityRelativePaymentDates"/>
