element <novationAmount> (local)
Namespace:
http://www.fpml.org/FpML-5/reporting
Type:
TradeLegSizeChange
Content:
complex, 9 elements
Defined:
locally witnin NovationAmounts.model group in fpml-business-events-5-5.xsd; see XML source

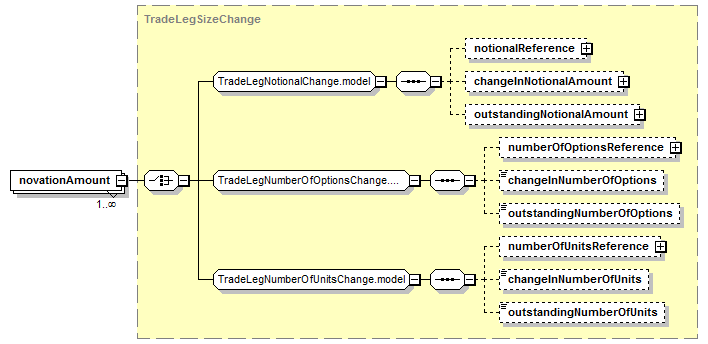

Content Model Diagram
XML Representation Summary
<novationAmount>

Content:
 (notionalReference?, changeInNotionalAmount?, outstandingNotionalAmount?) | (numberOfOptionsReference?, changeInNumberOfOptions?, outstandingNumberOfOptions?) | (numberOfUnitsReference?, changeInNumberOfUnits?, outstandingNumberOfUnits?)
</novationAmount>
Content model elements (9):
changeInNotionalAmount (defined in TradeLegNotionalChange.model group),
changeInNumberOfOptions (defined in TradeLegNumberOfOptionsChange.model group),
changeInNumberOfUnits (defined in TradeLegNumberOfUnitsChange.model group),
notionalReference (defined in TradeLegNotionalChange.model group),
numberOfOptionsReference,
numberOfUnitsReference,
outstandingNotionalAmount (defined in TradeLegNotionalChange.model group),
outstandingNumberOfOptions (defined in TradeLegNumberOfOptionsChange.model group),
outstandingNumberOfUnits (defined in TradeLegNumberOfUnitsChange.model group)
Included in content model of elements (1):
novation
XML Source (see within schema source)
<xsd:element maxOccurs="unbounded" name="novationAmount" type="TradeLegSizeChange"/>
