element <deliverableObligations> (local)
Namespace:
http://www.fpml.org/FpML-5/reporting
Type:
DeliverableObligations
Content:
complex, 23 elements
Defined:
locally witnin CreditCurveCharacteristics.model group in fpml-mktenv-5-5.xsd; see XML source

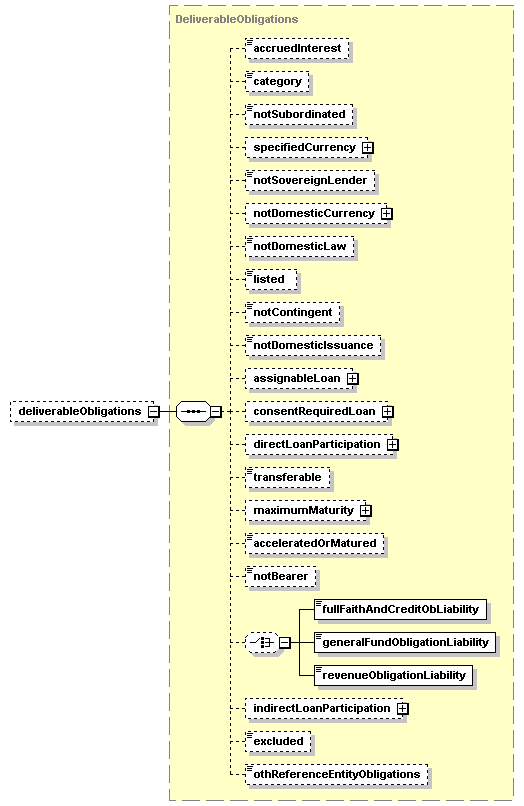

Content Model Diagram
XML Representation Summary
<deliverableObligations>

Content:
 accruedInterest?, category?, notSubordinated?, specifiedCurrency?, notSovereignLender?, notDomesticCurrency?, notDomesticLaw?, listed?, notContingent?, notDomesticIssuance?, assignableLoan?, consentRequiredLoan?, directLoanParticipation?, transferable?, maximumMaturity?, acceleratedOrMatured?, notBearer?, (fullFaithAndCreditObLiability | generalFundObligationLiability | revenueObligationLiability)?, indirectLoanParticipation?, excluded?, othReferenceEntityObligations?
</deliverableObligations>
Content model elements (23):
acceleratedOrMatured,
accruedInterest (defined in DeliverableObligations complexType),
assignableLoan,
category (defined in DeliverableObligations complexType),
consentRequiredLoan,
directLoanParticipation,
excluded (defined in DeliverableObligations complexType),
fullFaithAndCreditObLiability (defined in DeliverableObligations complexType),
generalFundObligationLiability (defined in DeliverableObligations complexType),
indirectLoanParticipation,
listed (defined in DeliverableObligations complexType),
maximumMaturity,
notBearer,
notContingent (defined in DeliverableObligations complexType),
notDomesticCurrency (defined in DeliverableObligations complexType),
notDomesticIssuance (defined in DeliverableObligations complexType),
notDomesticLaw (defined in DeliverableObligations complexType),
notSovereignLender (defined in DeliverableObligations complexType),
notSubordinated (defined in DeliverableObligations complexType),
othReferenceEntityObligations (defined in DeliverableObligations complexType),
revenueObligationLiability (defined in DeliverableObligations complexType),
specifiedCurrency (defined in DeliverableObligations complexType),
transferable
Included in content model of elements (1):
creditCurve
Annotation
What sort of obligation may be delivered in the event of the credit event. ISDA 2003 Term: Obligation Category/Deliverable Obligation Category
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="deliverableObligations" type="DeliverableObligations"/>
