element <termination> (local)

Namespace:	http://www.fpml.org/FpML-5/pretrade
Type:	TradeNotionalChange
Content:	complex, 14 elements
Defined:	locally witnin Events.model group in fpml-business-events-5-6.xsd; see XML source

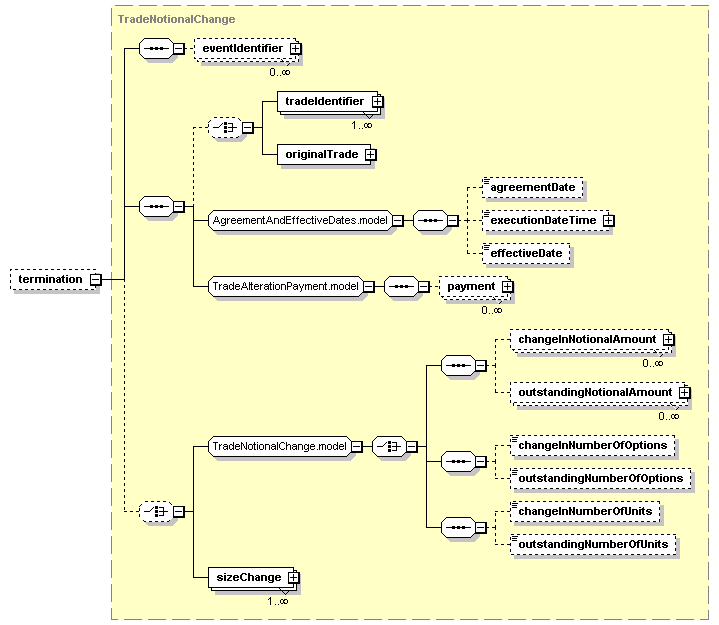

Content Model Diagram

XML Representation Summary

<termination>

Content:

eventIdentifier*, (tradeIdentifier+ | originalTrade)?, agreementDate?, executionDateTime?, effectiveDate?, payment*, ((changeInNotionalAmount*, outstandingNotionalAmount*) | (changeInNumberOfOptions?, outstandingNumberOfOptions?) | (changeInNumberOfUnits?, outstandingNumberOfUnits?) | sizeChange+)?

</termination>

Content model elements (14):

changeInNotionalAmount (defined in TradeNotionalChange.model group),

changeInNumberOfOptions (defined in TradeNotionalChange.model group),

changeInNumberOfUnits (defined in TradeNotionalChange.model group),

effectiveDate (defined in AgreementAndEffectiveDates.model group),

eventIdentifier (defined in AbstractEvent complexType),

executionDateTime (defined in AgreementAndEffectiveDates.model group),

originalTrade (defined in TradeChangeBase complexType),

outstandingNotionalAmount (defined in TradeNotionalChange.model group),

outstandingNumberOfOptions (defined in TradeNotionalChange.model group),

outstandingNumberOfUnits (defined in TradeNotionalChange.model group),

payment (defined in TradeAlterationPayment.model group),

tradeIdentifier (defined in TradeChangeBase complexType)

Included in content model of elements (5):

clearingEligibility, marginQuoteConfirmed, marginQuoteRefused, requestClearingEligibility, requestMarginQuote

XML Source (see within schema source)

<xsd:element minOccurs="0" name="termination" type="TradeNotionalChange"/>
