element <onBehalfOf> (local)
Namespace:
http://www.fpml.org/FpML-5/pretrade
Type:
OnBehalfOf
Content:
complex, 2 elements
Defined:
locally within OnBehalfOf.model group in fpml-shared-5-6.xsd; see XML source

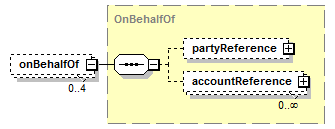

Content Model Diagram
XML Representation Summary
<onBehalfOf>

Content:
</onBehalfOf>
Content model elements (2):
accountReference (defined in OnBehalfOf complexType),
partyReference (defined in OnBehalfOf complexType)
Included in content model of elements (22):
clearingEligibility, clearingEligibilityAcknowledgement, creditLimitReport, creditLimitResponse, eventStatusResponse, limitCheckApproved, limitCheckRefused, marginQuoteAcknowledgement, marginQuoteConfirmed, marginQuoteRefused, orderStatusNotification, requestClearingEligibility, requestEventStatus, requestLimitCheck, requestMarginQuote, requestRetransmission, restoreCredit, serviceNotification, setCreditLimit, suspendCredit, verificationStatusAcknowledgement, verificationStatusNotification
Annotation
Indicates which party (or parties) (and accounts) a trade or event is being processed for. Normally there will only be a maximum of 2 parties, but in the case of a novation there could be a transferor, transferee, remaining party, and other remaining party. Except for this case, there should be no more than two onABehalfOf references in a message.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="4" minOccurs="0" name="onBehalfOf" type="OnBehalfOf"/>
