element <newTradeIdentifier> (local)
Namespace:
http://www.fpml.org/FpML-5/transparency
Type:
PartyTradeIdentifier
Content:
complex, 1 attribute, 7 elements
Defined:
locally within NewTrade.model group in fpml-business-events-5-7.xsd; see XML source

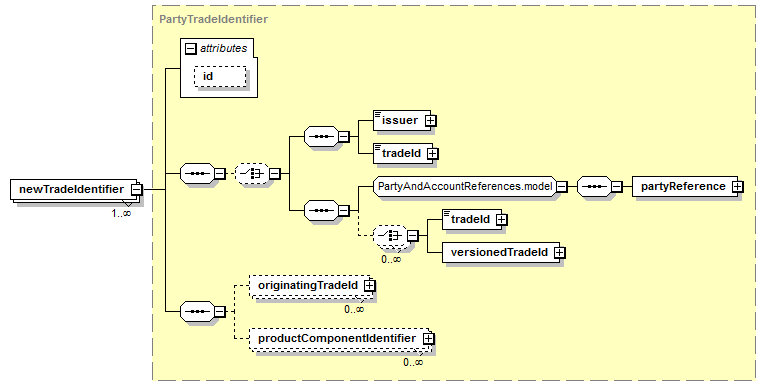

Content Model Diagram
XML Representation Summary
<newTradeIdentifier

 =
xsd:ID

>

Content:
</newTradeIdentifier>
Content model elements (7):
issuer (defined in TradeIdentifier complexType),
originatingTradeId,
partyReference (defined in PartyAndAccountReferences.model group),
productComponentIdentifier,
tradeId (defined in TradeIdentifier complexType),
tradeId (defined in TradeIdentifier complexType),
versionedTradeId
Included in content model of elements (1):
novation
Annotation
Indicates a reference to the new trade between the transferee and the remaining party.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" name="newTradeIdentifier" type="PartyTradeIdentifier"/>
