element <exercise> (local)
Namespace:
http://www.fpml.org/FpML-5/transparency
Type:
CommodityExercise
Content:
complex, 3 elements
Defined:
locally within CommodityFinancialOption.model group in fpml-com-5-7.xsd; see XML source

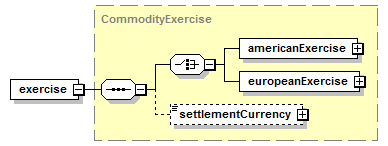

Content Model Diagram
XML Representation Summary
<exercise>

Content:
</exercise>
Content model elements (3):
americanExercise (defined in CommodityExercise complexType),
europeanExercise (defined in CommodityExercise complexType),
settlementCurrency (defined in CommodityExercise complexType)
Included in content model of elements (1):
commodityOption
Annotation
The parameters for defining how the commodity option can be exercised and how it is settled.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="exercise" type="CommodityExercise"/>
