element <onBehalfOf> (local)

Namespace:	http://www.fpml.org/FpML-5/transparency
Type:	OnBehalfOf
Content:	complex, 2 elements
Defined:	locally within OnBehalfOf.model group in fpml-shared-5-7.xsd; see XML source

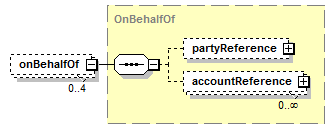

Content Model Diagram

XML Representation Summary

Content:

partyReference?, accountReference*

</onBehalfOf>

Content model elements (2):

accountReference,

partyReference (defined in OnBehalfOf complexType)

Included in content model of elements (11):

creditEventAcknowledgement, creditEventNotification, creditEventNotificationRetracted, eventStatusResponse, publicExecutionReport, publicExecutionReportAcknowledgement, publicExecutionReportRetracted, requestEventStatus, serviceNotification, verificationStatusAcknowledgement, verificationStatusNotification

Annotation

Indicates which party (or parties) (and accounts) a trade or event is being processed for. Normally there will only be a maximum of 2 parties, but in the case of a novation there could be a transferor, transferee, remaining party, and other remaining party. Except for this case, there should be no more than two onABehalfOf references in a message.

XML Source (w/o annotations (1); see within schema source)

<xsd:element maxOccurs="4" minOccurs="0" name="onBehalfOf" type="OnBehalfOf"/>
