element <additionalData> (local)

Namespace:	http://www.fpml.org/FpML-5/reporting
Type:	AdditionalData
Content:	complex, 5 elements
Defined:	locally within Exception.model group in fpml-msg-5-7.xsd; see XML source

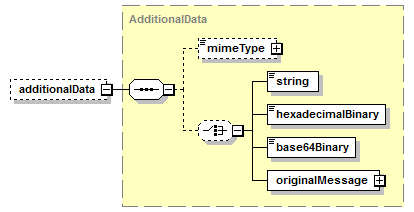

Content Model Diagram

XML Representation Summary

Content:

mimeType?, (string | hexadecimalBinary | base64Binary | originalMessage)?

</additionalData>

Content model elements (5):

base64Binary (defined in AdditionalData complexType),

hexadecimalBinary (defined in AdditionalData complexType),

mimeType (defined in AdditionalData complexType),

originalMessage (defined in AdditionalData complexType),

string (defined in AdditionalData complexType)

Included in content model of elements (19):

collateralAcceptanceException, collateralAllocationException, creditEventException, disputeException, eventActivityReportException, eventStatusException, exposureReportException, marginException, messageRejected, nettedTradeCashflowsException, nonpublicExecutionReportException, partyReportException, positionActivityReportException, positionReportException, resetReportException, serviceNotificationException, terminatingEventsReportException, valuationReportException, verificationStatusException

Annotation

Any string of additional data that may help the message processor, for example in a rejection message this might contain a code value or the text of the original request (within a CDATA section).

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="additionalData" type="AdditionalData"/>
