element <quotationCharacteristics> (local) | XML Schema Documentation

element <quotationCharacteristics> (local)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	QuotationCharacteristics
Content:	complex, 14 elements
Defined:	locally within Price complexType in fpml-asset-5-8.xsd; see XML source

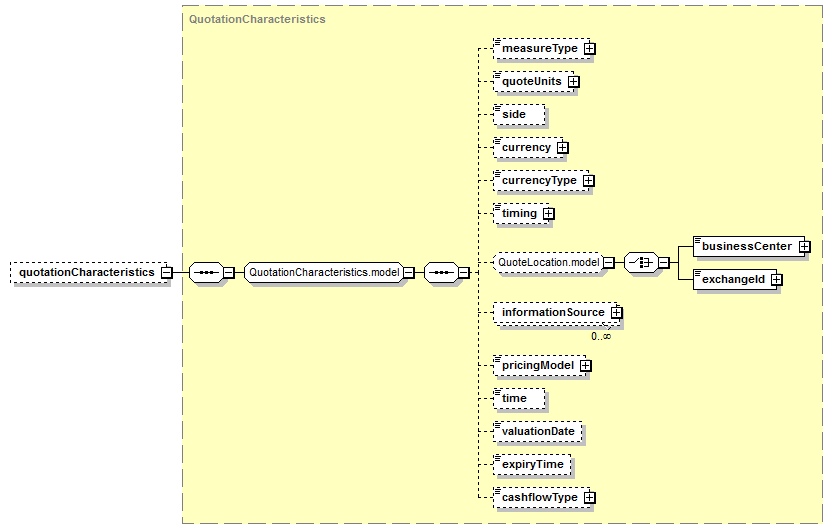

Content Model Diagram

XML Representation Summary

<quotationCharacteristics>

Content:

measureType?, quoteUnits?, side?, currency?, currencyType?, timing?, (businessCenter | exchangeId)?, informationSource*, pricingModel?, time?, valuationDate?, expiryTime?, cashflowType?

</quotationCharacteristics>

Content model elements (14):

businessCenter (defined in QuoteLocation.model group),

cashflowType (defined in QuotationCharacteristics.model group),

currency (defined in QuotationCharacteristics.model group),

exchangeId (defined in QuoteLocation.model group),

expiryTime (defined in QuotationCharacteristics.model group),

informationSource (defined in QuotationCharacteristics.model group),

side (defined in QuotationCharacteristics.model group),

time (defined in QuotationCharacteristics.model group),

valuationDate (defined in QuotationCharacteristics.model group)

Included in content model of elements (4):

initialPrice (in rateOfReturn),

underlyerPrice,

valuationPriceFinal,

valuationPriceInterim

Annotation

Allows information about how the price was quoted to be provided.

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="quotationCharacteristics" type="QuotationCharacteristics"/>
