complexType "EventProposedMatch"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 15 elements
Defined:
globally in fpml-business-events-5-8.xsd; see XML source
Includes:
definition of 1 element
Used:
at 1 location

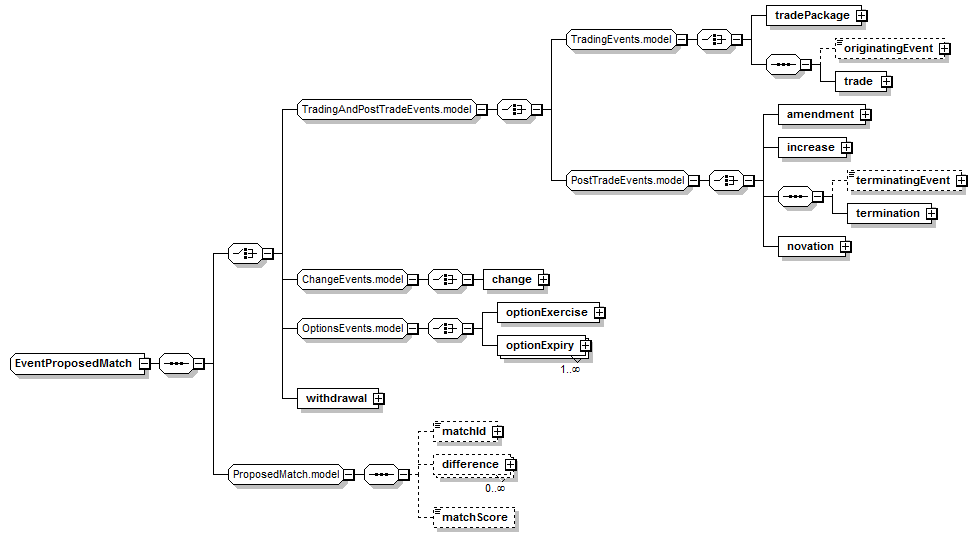

Content Model Diagram
XML Representation Summary
<...>

Content:
</...>
Content Model Elements (15):
amendment (defined in PostTradeEvents.model group),
change (defined in ChangeEvents.model group),
optionExpiry (defined in OptionsEvents.model group),
trade (defined in TradingEvents.model group),
tradePackage (defined in TradingEvents.model group),
All Direct / Indirect Based Elements (1):
proposedMatch
Known Usage Locations
Annotation
A structure that describes a proposed match between trades or post-trade event reports.
XML Source (w/o annotations (1); see within schema source)
<xsd:complexType name="EventProposedMatch">
<xsd:sequence>
<!--<xsd:group ref="Events.model"/> BPWG2014 Replaced by the below - comment to be deleted before 5.8LCWD -->
<xsd:choice>
<xsd:group ref="TradingAndPostTradeEvents.model"/>
<xsd:group ref="ChangeEvents.model"/>
<xsd:group ref="OptionsEvents.model"/>
<xsd:element name="withdrawal" type="Withdrawal"/>
</xsd:choice>
<xsd:group ref="ProposedMatch.model"/>
</xsd:sequence>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/15)
withdrawal
Type:
Withdrawal, complex content
XML Source (see within schema source)
<xsd:element name="withdrawal" type="Withdrawal"/>
