complexType "Withdrawal"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 6 elements
Defined:
globally in fpml-business-events-5-8.xsd; see XML source
Includes:
definitions of 6 elements
Used:
at 6 locations

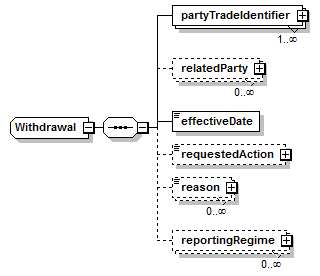

Content Model Diagram
XML Representation Summary
<...>

Content:
</...>
Content Model Elements (6):
effectiveDate (defined in Withdrawal complexType),
partyTradeIdentifier (defined in Withdrawal complexType),
reason (defined in Withdrawal complexType),
relatedParty (defined in Withdrawal complexType),
reportingRegime (defined in Withdrawal complexType),
requestedAction (defined in Withdrawal complexType)
All Direct / Indirect Based Elements (6):
withdrawal (defined in EventsChoice complexType),
Known Usage Locations
Annotation
A structure describing the removal of a trade from a service, such as a reporting service.
XML Source (w/o annotations (3); see within schema source)
<xsd:complexType name="Withdrawal">
<xsd:sequence>
<xsd:element maxOccurs="unbounded" name="partyTradeIdentifier" type="PartyTradeIdentifier"/>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="relatedParty" type="RelatedParty"/>
<xsd:element name="effectiveDate" type="xsd:date"/>
<xsd:element minOccurs="0" name="requestedAction" type="RequestedWithdrawalAction"/>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="reason" type="WithdrawalReason"/>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="reportingRegime" type="ReportingRegimeIdentifier"/>
</xsd:sequence>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 6/6)
effectiveDate
Type:
xsd:date, predefined, simple content
XML Source (see within schema source)
<xsd:element name="effectiveDate" type="xsd:date"/>
partyTradeIdentifier
Type:
PartyTradeIdentifier, complex content
XML Source (see within schema source)
<xsd:element maxOccurs="unbounded" name="partyTradeIdentifier" type="PartyTradeIdentifier"/>
reason
Type:
WithdrawalReason, simple content
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="reason" type="WithdrawalReason"/>
relatedParty
Type:
RelatedParty, complex content
This may be used to identify one or more parties that perform a role within the transaction. If this is within a partyTradeInformation block, the related party performs the role with respect to the party identifie by the "partyReference" in the partyTradeInformation block.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="relatedParty" type="RelatedParty"/>
reportingRegime
Type:
ReportingRegimeIdentifier, complex content
The supervisor/regulator to which this withdrawal applies
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="reportingRegime" type="ReportingRegimeIdentifier"/>
requestedAction
Type:
RequestedWithdrawalAction, simple content
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (see within schema source)
<xsd:element minOccurs="0" name="requestedAction" type="RequestedWithdrawalAction"/>
