element <settlementCurrency> (local)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	IdentifiedCurrency
Content:	simple, 2 attributes
Defined:	locally within CommodityExerciseBasket complexType in fpml-com-5-8.xsd; see XML source

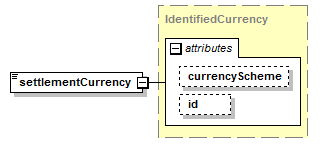

Content Model Diagram

XML Representation Summary

<settlementCurrency

currencyScheme	=	xsd:anyURI : "http://www.fpml.org/coding-scheme/external/iso4217-2001-08-15"
id	=	xsd:ID

Content:

{ xsd:normalizedString }

</settlementCurrency>

Simple Content Detail:

MaxLength:	255
MinLength:	0

Included in content model of elements (1):

exercise (in commodityBasketOption)

Annotation

The currency into which the Commodity Option Transaction will settle. If this is not the same as the currency in which the Commodity Reference Price is quoted, then an FX determination method should also be specified.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="settlementCurrency" type="IdentifiedCurrency"/>
