element <contractRateStep> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
NonNegativeMoney
Content:
complex, 1 attribute, 2 elements
Defined:
locally within CommodityFixedPriceSchedule complexType in fpml-com-5-8.xsd; see XML source

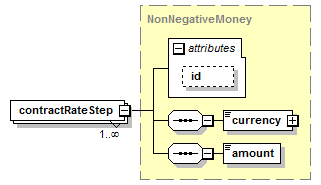

Content Model Diagram
XML Representation Summary
<contractRateStep

 =
xsd:ID

>

Content:
</contractRateStep>
Content model elements (2):
amount (defined in NonNegativeMoney complexType),
currency (defined in MoneyBase complexType)
Included in content model of elements (1):
fixedPriceSchedule
Annotation
For a DRY Voyage Charter or Time Charter Freight Swap, the price per relevant unit for pruposes of the calculation of a Fixed Amount for a given Calculation Period during the life of the trade. There must be Worldscale Rate Step specified for each Calculation Period, regardless of whether the Worldscale Rate Step changes or remains the same between periods.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" name="contractRateStep" type="NonNegativeMoney"/>
