element <settlementPeriodsPriceStep> (local)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	FixedPrice
Content:	complex, 1 attribute, 3 elements
Defined:	locally within CommoditySettlementPeriodsPriceSchedule complexType in fpml-com-5-8.xsd; see XML source

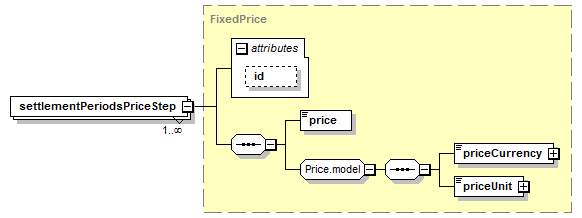

Content Model Diagram

XML Representation Summary

<settlementPeriodsPriceStep

xsd:ID

Content:

price, priceCurrency, priceUnit

</settlementPeriodsPriceStep>

Content model elements (3):

price (defined in FixedPrice complexType),

priceCurrency,

priceUnit

Included in content model of elements (1):

settlementPeriodsPriceSchedule

Annotation

For an electricity transaction, the Fixed Price for a given Calculation Period during the life of the trade which applies to the range(s) of Settlement Periods referenced by settlementPeriods Reference. There must be a Fixed Price step specified for each Calculation Period, regardless of whether the Fixed Price changes or remains the same between periods.

XML Source (w/o annotations (1); see within schema source)

<xsd:element maxOccurs="unbounded" name="settlementPeriodsPriceStep" type="FixedPrice"/>
