element <settlementPeriods> (local)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	SettlementPeriods
Content:	complex, 1 attribute, 6 elements
Defined:	locally within CommodityValuationDates complexType in fpml-com-5-8.xsd; see XML source

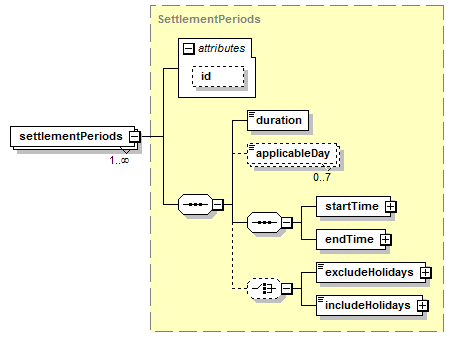

Content Model Diagram

XML Representation Summary

<settlementPeriods

xsd:ID

Content:

duration, applicableDay[0..7], startTime, endTime, (excludeHolidays | includeHolidays)?

</settlementPeriods>

Content model elements (6):

applicableDay (defined in SettlementPeriods complexType),

duration (defined in SettlementPeriods complexType),

endTime (defined in SettlementPeriods complexType),

excludeHolidays,

includeHolidays,

startTime (defined in SettlementPeriods complexType)

Included in content model of elements (2):

valuationDates (in commodityReturnCalculation),

valuationDates (in varianceCalculation)

Annotation

Specifies a set of Settlement Periods associated with an Electricity Transaction for delivery on an Applicable Day or for a series of Applicable Days.

XML Source (w/o annotations (1); see within schema source)

<xsd:element maxOccurs="unbounded" name="settlementPeriods" type="SettlementPeriods"/>
