complexType "GasDelivery"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 7 elements
Defined:
globally in fpml-com-5-8.xsd; see XML source
Includes:
definitions of 4 elements
Used:
at 1 location

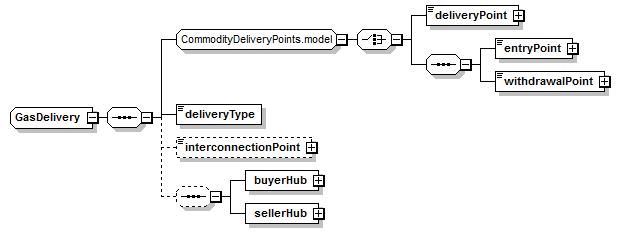

Content Model Diagram
XML Representation Summary
<...>

Content:
</...>
Content Model Elements (7):
buyerHub,
deliveryPoint (in deliveryConditions in gasPhysicalLeg),
deliveryType (in deliveryConditions in gasPhysicalLeg),
entryPoint (in deliveryConditions in gasPhysicalLeg),
interconnectionPoint (in deliveryConditions in gasPhysicalLeg),
sellerHub,
withdrawalPoint (in deliveryConditions in gasPhysicalLeg)
All Direct / Indirect Based Elements (1):
deliveryConditions (in gasPhysicalLeg)
Known Usage Locations
Annotation
The specification of the gas to be delivered.
XML Source (w/o annotations (5); see within schema source)
<xsd:complexType name="GasDelivery">
<xsd:sequence>
<xsd:group ref="CommodityDeliveryPoints.model"/>
<xsd:element name="deliveryType" type="DeliveryTypeEnum"/>
<xsd:element minOccurs="0" name="interconnectionPoint" type="InterconnectionPoint"/>
<xsd:sequence minOccurs="0">
<xsd:element name="buyerHub" type="CommodityHub"/>
<xsd:element name="sellerHub" type="CommodityHub"/>
</xsd:sequence>
</xsd:sequence>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 4/7)
buyerHub
Type:
CommodityHub, complex content
The hub code of the gas buyer.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="buyerHub" type="CommodityHub"/>
deliveryType
Type:
DeliveryTypeEnum, simple content
Indicates whether the buyer and seller are contractually obliged to consume and supply the specified quantities of the commodity.
Simple Content
enumeration of xsd:token
Enumeration:
"Firm", "Interruptible"
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="deliveryType" type="DeliveryTypeEnum"/>
interconnectionPoint
Type:
InterconnectionPoint, simple content
Identification of the border(s) or border point(s) of a transportation contract.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="interconnectionPoint" type="InterconnectionPoint"/>
sellerHub
Type:
CommodityHub, complex content
The hub code of the has seller.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="sellerHub" type="CommodityHub"/>
