complexType "EventRequestAcknowledgement"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 3 attributes, 10 elements
Defined:
globally in fpml-confirmation-processes-5-8.xsd; see XML source
Includes:
definition of 1 element
Used:
at 9 locations

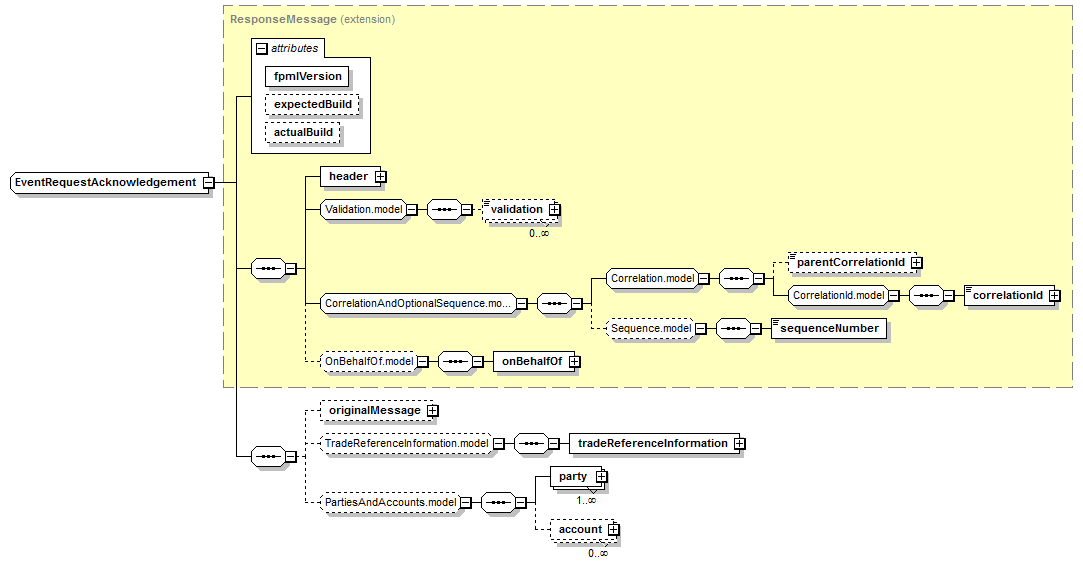

Content Model Diagram
XML Representation Summary
<...

 =
xsd:token
 =
xsd:positiveInteger
 =
"3"

>

Content:
</...>
Content Model Elements (10):
account,
correlationId,
header (defined in ResponseMessage complexType),
onBehalfOf (defined in OnBehalfOf.model group),
originalMessage (defined in EventRequestAcknowledgement complexType),
parentCorrelationId,
party (defined in PartiesAndAccounts.model group),
sequenceNumber (defined in Sequence.model group),
tradeReferenceInformation,
validation
All Direct / Indirect Based Elements (9):
allocationAcknowledgement, clearingAcknowledgement, confirmationAcknowledgement, consentAcknowledgement, executionAcknowledgement, executionAdviceAcknowledgement, maturityAcknowledgement, tradeChangeAdviceAcknowledgement, tradeReferenceInformationUpdateAcknowledgement
Known Usage Locations
Annotation
Defines the structure for a message acknowledging an event request.
Type Definition Detail
Type Derivation Tree
Document (extension)
  Message (extension)
      ResponseMessage (extension)
          EventRequestAcknowledgement
XML Source (w/o annotations (1); see within schema source)
<xsd:complexType name="EventRequestAcknowledgement">
<xsd:complexContent>
<xsd:extension base="ResponseMessage">
<xsd:sequence>
<xsd:element minOccurs="0" name="originalMessage" type="UnprocessedElementWrapper"/>
<xsd:group minOccurs="0" ref="TradeReferenceInformation.model"/>
<xsd:group minOccurs="0" ref="PartiesAndAccounts.model"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/10)
originalMessage
Type:
UnprocessedElementWrapper, complex content
XML Source (see within schema source)
<xsd:element minOccurs="0" name="originalMessage" type="UnprocessedElementWrapper"/>
