complexType "RequestAllocation"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 3 attributes, 12 elements
Defined:
globally in fpml-confirmation-processes-5-8.xsd; see XML source
Includes:
definitions of 3 elements
Used:
at 1 location

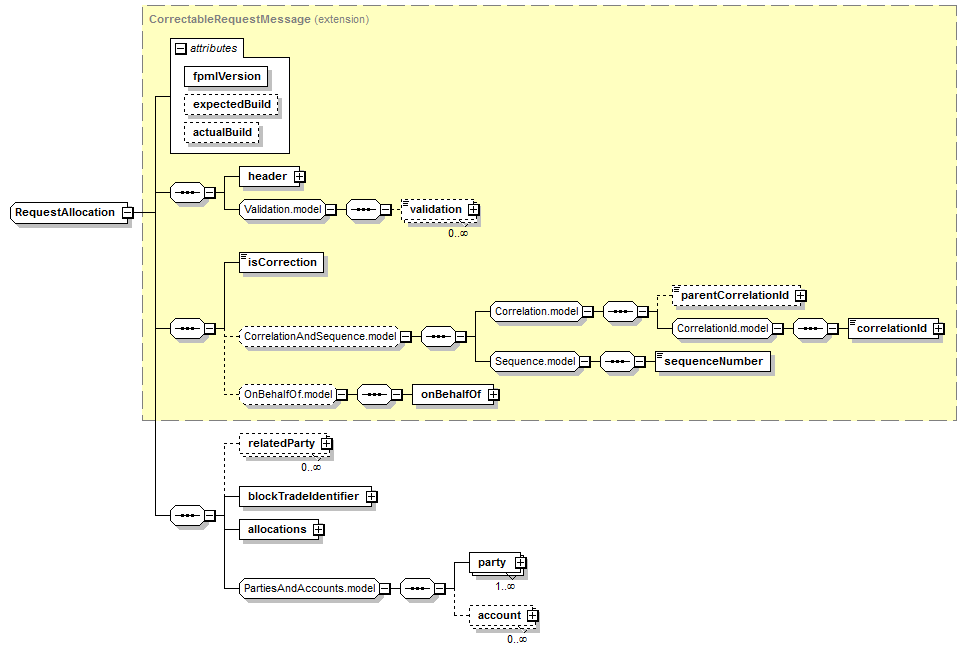

Content Model Diagram
XML Representation Summary
<...

 =
xsd:token
 =
xsd:positiveInteger
 =
"3"

>

Content:
</...>
Content Model Elements (12):
header (defined in RequestMessage complexType),
onBehalfOf (defined in OnBehalfOf.model group),
party (defined in PartiesAndAccounts.model group),
sequenceNumber (defined in Sequence.model group),
All Direct / Indirect Based Elements (1):
requestAllocation
Known Usage Locations
Annotation
A message requesting that a trade be split among several accounts.
Type Definition Detail
Type Derivation Tree
Document (extension)
  Message (extension)
      RequestMessage (extension)
          CorrectableRequestMessage (extension)
              RequestAllocation
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="RequestAllocation">
<xsd:complexContent>
<xsd:extension base="CorrectableRequestMessage">
<xsd:sequence>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="relatedParty" type="RelatedParty"/>
<xsd:element name="blockTradeIdentifier" type="TradeIdentifier"/>
<xsd:element name="allocations" type="Allocations"/>
<xsd:group ref="PartiesAndAccounts.model"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 3/12)
allocations
Type:
Allocations, complex content
XML Source (see within schema source)
<xsd:element name="allocations" type="Allocations"/>
blockTradeIdentifier
Type:
TradeIdentifier, complex content
XML Source (see within schema source)
<xsd:element name="blockTradeIdentifier" type="TradeIdentifier"/>
relatedParty
Type:
RelatedParty, complex content
Identifies a related party performing a role within the transaction.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="relatedParty" type="RelatedParty"/>
