element <relativeDateSequence> (local)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	RelativeDateSequence
Content:	complex, 4 elements
Defined:	locally within AdjustableDateOrRelativeDateSequence complexType in fpml-eq-shared-5-8.xsd; see XML source

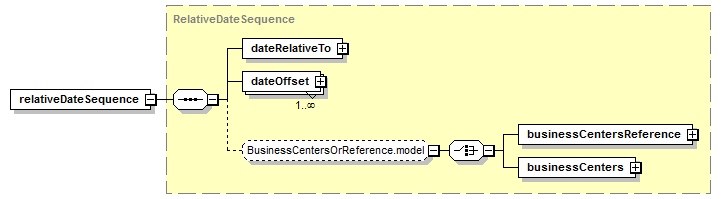

Content Model Diagram

XML Representation Summary

Content:

dateRelativeTo, dateOffset+, (businessCentersReference | businessCenters)?

</relativeDateSequence>

Content model elements (4):

businessCenters (defined in BusinessCentersOrReference.model group),

businessCentersReference,

dateOffset (defined in RelativeDateSequence complexType),

dateRelativeTo (defined in RelativeDateSequence complexType)

Included in content model of elements (1):

valuationDate (defined in EquityValuation complexType)

Annotation

A date specified in relation to some other date defined in the document (the anchor date), where there is the opportunity to specify a combination of offset rules. This component will typically be used for defining the valuation date in relation to the payment date, as both the currency and the exchange holiday calendars need to be considered.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="relativeDateSequence" type="RelativeDateSequence"/>
