element <amount> (local)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	ReturnSwapAmount
Content:	complex, 11 elements
Defined:	locally within ReturnLeg complexType in fpml-eq-shared-5-8.xsd; see XML source

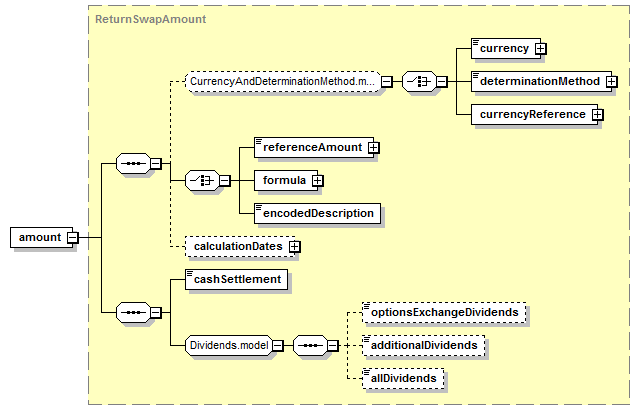

Content Model Diagram

XML Representation Summary

Content:

(currency | determinationMethod | currencyReference)?, (referenceAmount | formula | encodedDescription), calculationDates?, cashSettlement, optionsExchangeDividends?, additionalDividends?, allDividends?

</amount>

Content model elements (11):

additionalDividends,

allDividends,

calculationDates (defined in LegAmount complexType),

cashSettlement (in amount in returnLeg),

currency (defined in CurrencyAndDeterminationMethod.model group),

currencyReference,

determinationMethod (defined in CurrencyAndDeterminationMethod.model group),

encodedDescription,

formula (defined in LegAmount complexType),

optionsExchangeDividends,

referenceAmount (defined in LegAmount complexType)

Included in content model of elements (1):

returnLeg

Annotation

Specifies, in relation to each Payment Date, the amount to which the Payment Date relates. For return swaps this element is equivalent to the Equity Amount term as defined in the ISDA 2002 Equity Derivatives Definitions.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="amount" type="ReturnSwapAmount"/>
