element <observationEndTime> (local)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	BusinessCenterTime
Content:	complex, 2 elements
Defined:	locally within FxTouch complexType in fpml-fx-5-8.xsd; see XML source

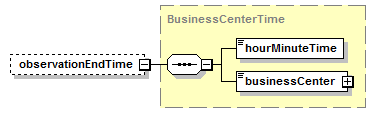

Content Model Diagram

XML Representation Summary

Content:

hourMinuteTime, businessCenter

</observationEndTime>

Content model elements (2):

businessCenter (defined in BusinessCenterTime complexType),

hourMinuteTime (defined in BusinessCenterTime complexType)

Included in content model of elements (1):

touch

Annotation

The time on the end date at which the observation period for an american trigger ends. If the time is not present, then the time is deemed to be the same as the expiration time.

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="observationEndTime" type="BusinessCenterTime"/>
