element <observationPoint> (local)
Namespace:
Type:
Content:
complex, 2 elements
Defined:
locally within FxTouch complexType in fpml-fx-5-8.xsd; see XML source

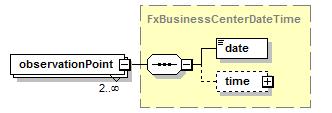

Content Model Diagram
XML Representation Summary
<observationPoint>

Content:
</observationPoint>
Content model elements (2):
date (defined in FxBusinessCenterDateTime complexType),
time (defined in FxBusinessCenterDateTime complexType)
Included in content model of elements (1):
touch
Annotation
The dates and times at which rate observations are made to determine whether a barrier event has occurred for a discrete trigger. If the time is not present then the time is deemed to be the same as the expiration time.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="2" name="observationPoint" type="FxBusinessCenterDateTime"/>
