element <payoffLeverage> (local)
Namespace:
Type:
Content:
complex, 1 attribute, 8 elements
Defined:

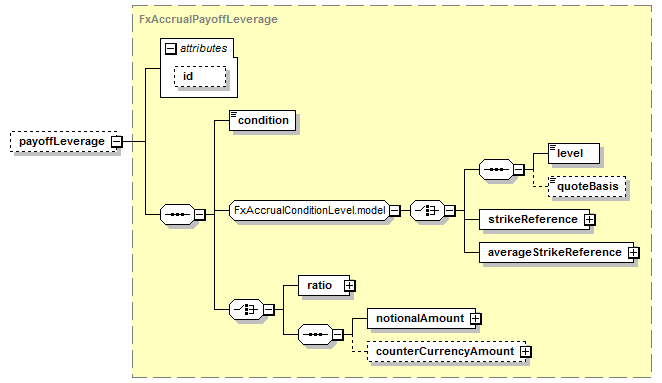

Content Model Diagram
XML Representation Summary
<payoffLeverage

 =
xsd:ID

>

Content:
</payoffLeverage>
Content model elements (8):
averageStrikeReference,
condition (in payoffLeverage in vanillaPayoffRegion in fxAccrualForward),
counterCurrencyAmount (in payoffLeverage in vanillaPayoffRegion in fxAccrualForward),
level (defined in FxAccrualConditionLevel.model group),
notionalAmount (in payoffLeverage in vanillaPayoffRegion in fxAccrualForward),
quoteBasis (defined in FxAccrualConditionLevel.model group),
ratio (in payoffLeverage in vanillaPayoffRegion in fxAccrualForward),
strikeReference (defined in FxAccrualConditionLevel.model group)
Included in content model of elements (1):
vanillaPayoffRegion (in fxAccrualForward)
Annotation
These structures define a leverage multiplier to the payoff amounts at settlement points.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="payoffLeverage" type="FxAccrualPayoffLeverage"/>
