element <expirySchedule> (local)
Namespace:
Type:
Content:
complex, 1 attribute, 11 elements
Defined:

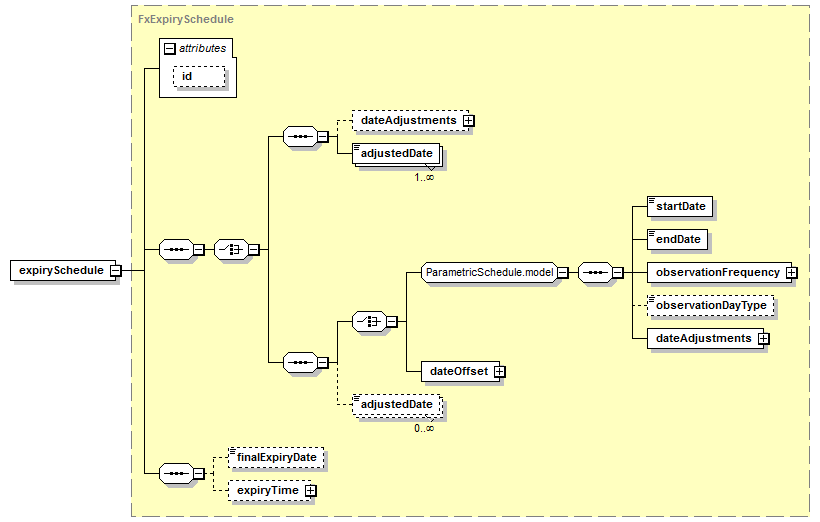

Content Model Diagram
XML Representation Summary
<expirySchedule

 =
xsd:ID

>

Content:
</expirySchedule>
Content model elements (11):
adjustedDate (defined in FxSchedule complexType),
adjustedDate (defined in FxSchedule complexType),
dateAdjustments (defined in FxSchedule complexType),
dateOffset (defined in FxSchedule complexType),
endDate (defined in ParametricSchedule.model group),
expiryTime (defined in FxExpirySchedule complexType),
finalExpiryDate (defined in FxExpirySchedule complexType),
Included in content model of elements (1):
fxTargetForward
Annotation
Defines the expiry/observation schedule of the target product.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="expirySchedule" type="FxExpirySchedule"/>
