element <settlementSchedule> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
FxSettlementSchedule
Content:
complex, 1 attribute, 10 elements
Defined:
locally within FxTargetKnockoutForwardStrip complexType in fpml-fx-complex-5-8.xsd; see XML source

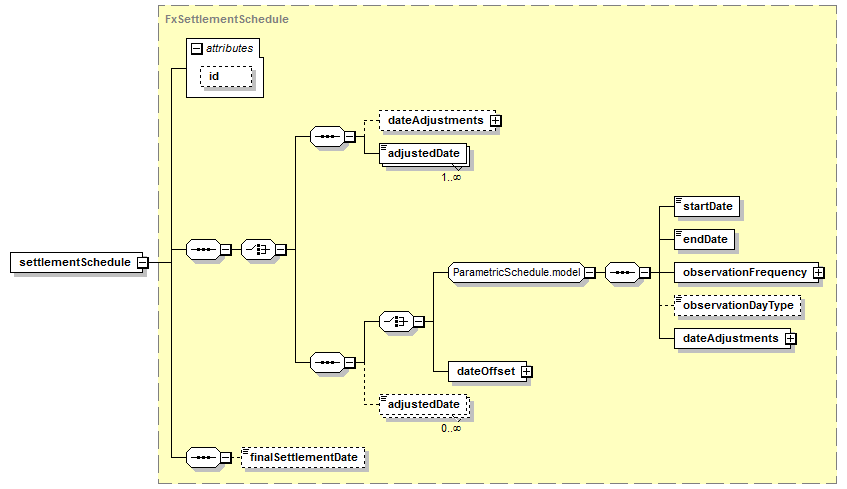

Content Model Diagram
XML Representation Summary
<settlementSchedule

 =
xsd:ID

>

Content:
</settlementSchedule>
Content model elements (10):
adjustedDate (defined in FxSchedule complexType),
adjustedDate (defined in FxSchedule complexType),
dateAdjustments (defined in FxSchedule complexType),
dateAdjustments (defined in ParametricSchedule.model group),
dateOffset (defined in FxSchedule complexType),
endDate (defined in ParametricSchedule.model group),
finalSettlementDate (defined in FxSettlementSchedule complexType),
observationDayType,
observationFrequency,
startDate (defined in ParametricSchedule.model group)
Included in content model of elements (1):
fxTargetForward
Annotation
Defines the settlement/payment schedule of the target product.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="settlementSchedule" type="FxSettlementSchedule"/>
