element <crossRate> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
CrossRate
Content:
complex, 6 elements
Defined:
locally within GenericProductExchangeRate complexType in fpml-generic-5-8.xsd; see XML source

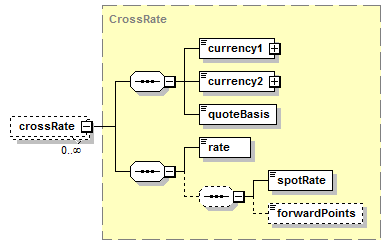

Content Model Diagram
XML Representation Summary
<crossRate>

Content:
</crossRate>
Content model elements (6):
currency1 (defined in QuotedCurrencyPair complexType),
currency2 (defined in QuotedCurrencyPair complexType),
forwardPoints (defined in CrossRate complexType),
quoteBasis (defined in QuotedCurrencyPair complexType),
rate (defined in CrossRate complexType),
spotRate (defined in CrossRate complexType)
Included in content model of elements (1):
exchangeRate (in underlyer defined in GenericProduct complexType)
Annotation
An optional element that allow for definition of the currency exchange rates used to cross between the traded currencies for non-base currency FX contracts.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="crossRate" type="CrossRate"/>
