element <additionalPayment> (local)
Namespace:
Type:
Content:
complex, 2 attributes, 10 elements
Defined:
locally within Fra complexType in fpml-ird-5-8.xsd; see XML source

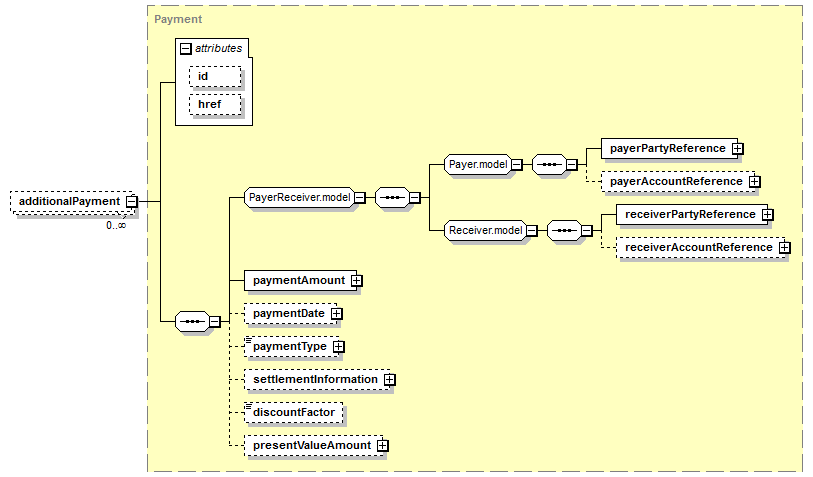

Content Model Diagram
XML Representation Summary
<additionalPayment

 =
xsd:ID
 =
xsd:IDREF

>

Content:
</additionalPayment>
Content model elements (10):
discountFactor (defined in Payment complexType),
payerPartyReference (defined in Payer.model group),
paymentAmount (defined in Payment complexType),
paymentDate (defined in Payment complexType),
paymentType (defined in Payment complexType),
presentValueAmount (defined in Payment complexType),
settlementInformation (defined in Payment complexType)
Included in content model of elements (1):
fra
Annotation
Additional payments between the principal parties (i.e. the parties referenced as the FRA buyer and seller).
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="additionalPayment" type="Payment"/>
