element <paymentDaysOffset> (local)
complex, 1 attribute, 3 elements
locally within PaymentDates complexType in fpml-ird-5-8.xsd; see XML source

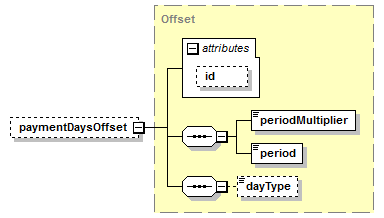

Content Model Diagram
XML Representation Summary
Content model elements (3):
dayType (defined in Offset complexType),
period (defined in Period complexType),
periodMultiplier (defined in Period complexType)
Included in content model of elements (1):
paymentDates (defined in InterestRateStream complexType)
If early payment or delayed payment is required, specifies the number of days offset that the payment occurs relative to what would otherwise be the unadjusted payment date. The offset can be specified in terms of either calendar or business days. Even in the case of a calendar days offset, the resulting payment date, adjusted for the specified calendar days offset, will still be adjusted in accordance with the specified payment dates adjustments. This element should only be included if early or delayed payment is applicable, i.e. if the periodMultiplier element value is not equal to zero. An early payment would be indicated by a negative periodMultiplier element value and a delayed payment (or payment lag) would be indicated by a positive periodMultiplier element value.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="paymentDaysOffset" type="Offset"/>
