element <paymentFrequency> (local)
complex, 1 attribute, 2 elements
locally within PaymentDates complexType in fpml-ird-5-8.xsd; see XML source

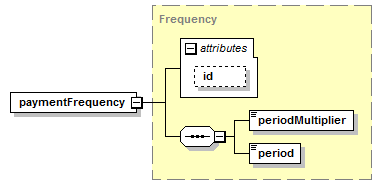

Content Model Diagram
XML Representation Summary
Content model elements (2):
period (defined in Frequency complexType),
periodMultiplier (defined in Frequency complexType)
Included in content model of elements (1):
paymentDates (defined in InterestRateStream complexType)
The frequency at which regular payment dates occur. If the payment frequency is equal to the frequency defined in the calculation period dates component then one calculation period contributes to each payment amount. If the payment frequency is less frequent than the frequency defined in the calculation period dates component then more than one calculation period will contribute to the payment amount. A payment frequency more frequent than the calculation period frequency or one that is not a multiple of the calculation period frequency is invalid. If the payment frequency is of value T (term), the period is defined by the swap\swapStream\calculationPerioDates\effectiveDate and the swap\swapStream\calculationPerioDates\terminationDate.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="paymentFrequency" type="Frequency"/>
