complexType "FacilitySummary"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 1 attribute, 13 elements
Defined:	globally in fpml-loan-5-8.xsd; see XML source
Used:	at 2 locations

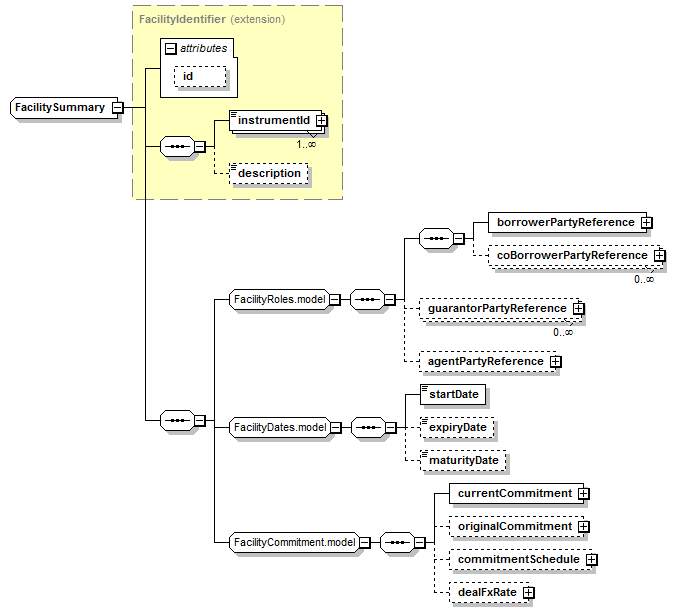

Content Model Diagram

XML Representation Summary

<...

xsd:ID

Content:

instrumentId+, description?, borrowerPartyReference, coBorrowerPartyReference*, guarantorPartyReference*, agentPartyReference?, startDate, expiryDate?, maturityDate?, currentCommitment, originalCommitment?, commitmentSchedule?, dealFxRate?

</...>

Content Model Elements (13):

agentPartyReference (defined in FacilityRoles.model group),

borrowerPartyReference (defined in FacilityRoles.model group),

coBorrowerPartyReference,

commitmentSchedule (defined in FacilityCommitment.model group),

currentCommitment,

dealFxRate,

description (defined in IdentifiedAsset complexType),

expiryDate (defined in FacilityDates.model group),

guarantorPartyReference (defined in FacilityRoles.model group),

instrumentId (defined in IdentifiedAsset complexType),

maturityDate (defined in FacilityDates.model group),

originalCommitment,

startDate (defined in FacilityDates.model group)

Known Direct Subtypes (1):

Facility

Known Indirect Subtypes (4):

DelayedDraw, LetterOfCreditFacility, Revolver, TermLoan

All Direct / Indirect Based Elements (6):

delayedDraw, facilityGroup, facilitySummary, letterOfCreditFacility, revolver, termLoan

Known Usage Locations

In derivations of other global types (1):

Facility (as extension base)
As direct type of elements (1):

facilitySummary

Annotation

A short form of a facility..

Type Definition Detail

Type Derivation Tree

Asset (extension)

IdentifiedAsset (extension)

FacilityIdentifier (extension)

FacilitySummary

XML Source (w/o annotations (4); see within schema source)

<xsd:complexType abstract="false" name="FacilitySummary">

<xsd:complexContent>

<xsd:extension base="FacilityIdentifier">

<xsd:sequence>

<xsd:group ref="FacilityRoles.model"/>

<xsd:group ref="FacilityDates.model"/>

<xsd:group ref="FacilityCommitment.model"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>

XML schema documentation generated with DocFlex/XML 1.9.0 using DocFlex/XML XSDDoc 2.8.0 template set. All content model diagrams generated by Altova XMLSpy via DocFlex/XML XMLSpy Integration.
