complexType "LcOption"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 9 elements
Defined:
globally in fpml-loan-5-8.xsd; see XML source
Used:
at 2 locations

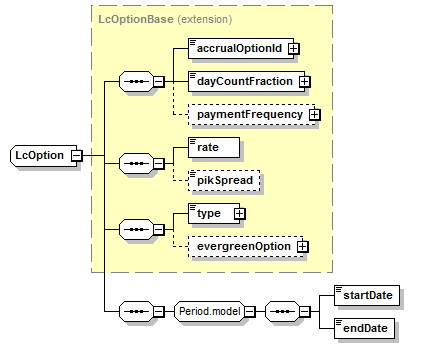

Content Model Diagram
XML Representation Summary
<...>

Content:
</...>
Content Model Elements (9):
dayCountFraction (defined in AccrualOptionBase complexType),
endDate (defined in Period.model group),
paymentFrequency (defined in AccrualOptionBase complexType),
pikSpread (defined in FixedRateOptionBase complexType),
rate (defined in FixedRateOptionBase complexType),
startDate (defined in Period.model group),
type (defined in LcOptionBase complexType)
All Direct / Indirect Based Elements (2):
Known Usage Locations
Annotation
Defines the letter of credit fee applicable to a facility.
Type Definition Detail
Type Derivation Tree
AccrualOptionBase (extension)
  FixedRateOptionBase (extension)
      LcOptionBase (extension)
          LcOption
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="LcOption">
<xsd:complexContent>
<xsd:extension base="LcOptionBase">
<xsd:sequence>
<xsd:group ref="Period.model"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
