complexType "MinimumAmountRule"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 5 elements
Defined:	globally in fpml-loan-5-8.xsd; see XML source
Includes:	definitions of 5 elements
Used:	at 2 locations

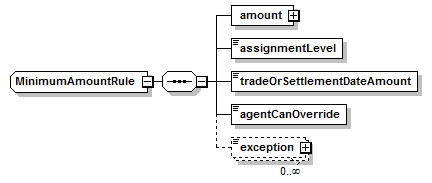

Content Model Diagram

XML Representation Summary

<...>

Content:

amount, assignmentLevel, tradeOrSettlementDateAmount, agentCanOverride, exception*

</...>

Content Model Elements (5):

agentCanOverride,

amount (defined in MinimumAmountRule complexType),

assignmentLevel,

exception (defined in MinimumAmountRule complexType),

tradeOrSettlementDateAmount

All Direct / Indirect Based Elements (2):

minimumAssignmentRule, minimumHoldRule

Known Usage Locations

As direct type of elements (2):

minimumAssignmentRule, minimumHoldRule

Annotation

A generic rule describing minimum amounts associated to a particular facility.

XML Source (w/o annotations (6); see within schema source)

<xsd:complexType name="MinimumAmountRule">

<xsd:sequence>

<xsd:element name="amount" type="NonNegativeMoney"/>

<xsd:element name="assignmentLevel" type="AssignmentLevelEnum"/>

<xsd:element name="tradeOrSettlementDateAmount" type="TradeSettlementDateEnum"/>

<xsd:element name="agentCanOverride" type="xsd:boolean"/>

<xsd:element maxOccurs="unbounded" minOccurs="0" name="exception" type="RuleException"/>

</xsd:sequence>

</xsd:complexType>

Content Element Detail (all declarations; defined within this component only; 5/5)

agentCanOverride

Type:

xsd:boolean, predefined, simple content

A flag to determine whether an agent can override the minimum rule.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="agentCanOverride" type="xsd:boolean"/>

amount

Type:

NonNegativeMoney, complex content

The amount associated with the rule (expressed in facility currency).

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="amount" type="NonNegativeMoney"/>

assignmentLevel

Type:

AssignmentLevelEnum, simple content

Defines whether the minimum rule applies at the overall trade or allocation level.

Simple Content

enumeration of xsd:token

Enumeration:

"Allocation"	-	Specific allocation level.
"Trade"	-	Overall trade level.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="assignmentLevel" type="AssignmentLevelEnum"/>

exception

Type:

RuleException, simple content

Exceptions describing the situations when the minimum rule does NOT apply.

Simple Content

xsd:normalizedString

maxLength:	255
minLength:	0

XML Source (w/o annotations (1); see within schema source)

<xsd:element maxOccurs="unbounded" minOccurs="0" name="exception" type="RuleException"/>

tradeOrSettlementDateAmount

Type:

TradeSettlementDateEnum, simple content

Defines whether the minimum rule applies as of trade or settlement date amount.

Simple Content

enumeration of xsd:token

Enumeration:

"SettlementDate"	-	As of settlement date.
"TradeDate"	-	As of trade date.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="tradeOrSettlementDateAmount" type="TradeSettlementDateEnum"/>
