element <businessCenter> (local)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	BusinessCenter
Content:	simple, 2 attributes
Defined:	locally within CreditEventNotice complexType in fpml-option-shared-5-8.xsd; see XML source

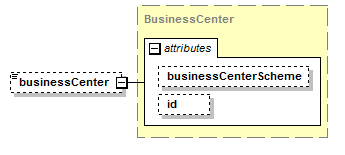

Content Model Diagram

XML Representation Summary

<businessCenter

businessCenterScheme	=	xsd:anyURI : "http://www.fpml.org/coding-scheme/business-center"
id	=	xsd:ID

Content:

{ xsd:normalizedString }

</businessCenter>

Simple Content Detail:

MaxLength:	255
MinLength:	0

Included in content model of elements (1):

creditEventNotice (defined in CreditEvents complexType)

Annotation

Inclusion of this business center element implies that Greenwich Mean Time in Section 3.3 of the 2003 ISDA Credit Derivatives Definitions is replaced by the local time of the city indicated by the businessCenter element value.

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="businessCenter" type="BusinessCenter"/>
