element <farLeg> (local)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	FarRepoTransactionLeg
Content:	complex, 1 attribute, 12 elements
Defined:	locally within Repo complexType in fpml-repo-5-8.xsd; see XML source

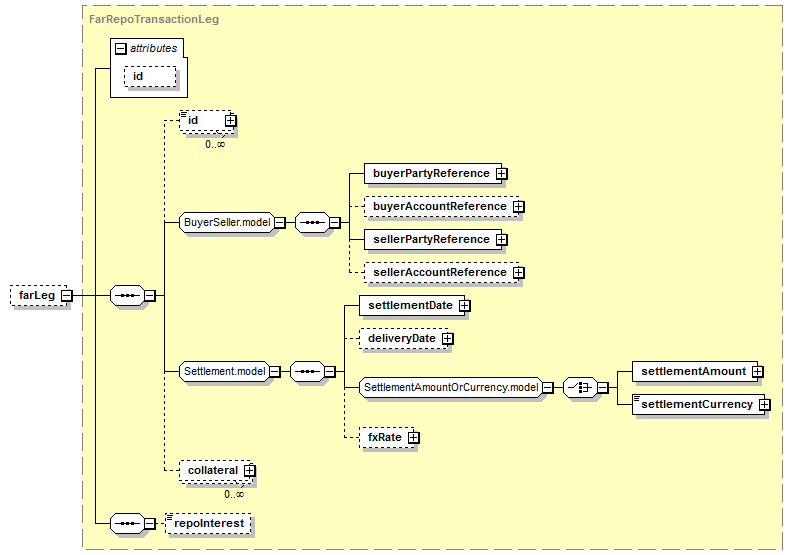

Content Model Diagram

XML Representation Summary

<farLeg

xsd:ID

Content:

id*, buyerPartyReference, buyerAccountReference?, sellerPartyReference, sellerAccountReference?, settlementDate, deliveryDate?, (settlementAmount | settlementCurrency), fxRate?, collateral*, repoInterest?

</farLeg>

Content model elements (12):

buyerAccountReference,

buyerPartyReference (defined in BuyerSeller.model group),

collateral (defined in RepoTransactionLeg complexType),

deliveryDate (defined in Settlement.model group),

fxRate (defined in Settlement.model group),

id (defined in RepoTransactionLeg complexType),

repoInterest,

sellerAccountReference,

sellerPartyReference (defined in BuyerSeller.model group),

settlementAmount (defined in SettlementAmountOrCurrency.model group),

settlementCurrency (defined in SettlementAmountOrCurrency.model group),

settlementDate (defined in Settlement.model group)

Included in content model of elements (1):

repo

Annotation

The far leg of the repo contract, i.e. the repurchase transaction. The BuyerSeller model in the far leg must be the exact opposite of the one found in the near leg.

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="farLeg" type="FarRepoTransactionLeg"/>
