element <location> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
TimezoneLocation
Content:
simple, 1 attribute
Defined:
locally within PrevailingTime complexType in fpml-shared-5-8.xsd; see XML source

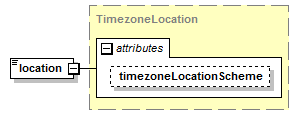

Content Model Diagram
XML Representation Summary
<location

 =
xsd:anyURI : "http://www.fpml.org/coding-scheme/external/tzdatabase"

>

Content:
{ xsd:normalizedString }
</location>
Simple Content Detail:
MaxLength:
255
MinLength:
0
Included in content model of elements (6):
expirationTime (in americanExercise defined in CommodityPhysicalExercise complexType),
expirationTime (in europeanExercise defined in CommodityPhysicalExercise complexType),
latestExerciseTime (in americanExercise defined in CommodityPhysicalExercise complexType),
supplyEndTime,
supplyStartTime,
time (defined in OffsetPrevailingTime complexType)
Annotation
The geographic location to which the hourMinuteTime applies. The time takes into account any current day light saving changes or other adjustments i.e. it is the prevaling time at the location.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="location" type="TimezoneLocation"/>
