complexType "RoutingIdsAndExplicitDetails"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 5 elements
Defined:	globally in fpml-shared-5-8.xsd; see XML source
Includes:	definition of 1 element
Used:	at 1 location

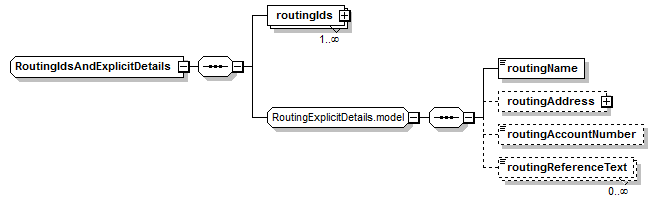

Content Model Diagram

XML Representation Summary

<...>

Content:

routingIds+, routingName, routingAddress?, routingAccountNumber?, routingReferenceText*

</...>

Content Model Elements (5):

routingAccountNumber,

routingAddress,

routingIds (in routingIdsAndExplicitDetails),

routingName,

routingReferenceText

All Direct / Indirect Based Elements (1):

routingIdsAndExplicitDetails

Known Usage Locations

As direct type of elements (1):

routingIdsAndExplicitDetails

Annotation

A type that provides a combination of payment system identification codes with physical postal address details, for the purposes of identifying a party involved in the routing of a payment.

XML Source (w/o annotations (2); see within schema source)

<xsd:complexType name="RoutingIdsAndExplicitDetails">

<xsd:sequence>

<xsd:element maxOccurs="unbounded" name="routingIds" type="RoutingIds"/>

<xsd:group ref="RoutingExplicitDetails.model"/>

</xsd:sequence>

</xsd:complexType>

Content Element Detail (all declarations; defined within this component only; 1/5)

routingIds

Type:

RoutingIds, complex content

A set of unique identifiers for a party, eachone identifying the party within a payment system. The assumption is that each party will not have more than one identifier within the same payment system.

XML Source (w/o annotations (1); see within schema source)

<xsd:element maxOccurs="unbounded" name="routingIds" type="RoutingIds"/>
