element <predeterminedClearingOrganizationPartyReference> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
PartyReference
Content:
empty, 1 attribute
Defined:
locally within SwaptionPhysicalSettlement complexType in fpml-shared-5-8.xsd; see XML source

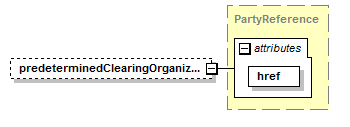

Content Model Diagram
XML Representation Summary
<predeterminedClearingOrganizationPartyReference

 =
xsd:IDREF
/>
Included in content model of elements (5):
clearingInstructions (defined in CommodityPhysicalExercise complexType),
clearingInstructions (in creditDefaultSwapOption),
clearingInstructions (in dividendSwapOptionTransactionSupplement),
clearingInstructions (in varianceOptionTransactionSupplement),
physicalSettlement (in swaption)
Annotation
A reference to the clearing organization (CCP, DCO) to which the trade should be cleared.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="predeterminedClearingOrganizationPartyReference" type="PartyReference"/>
