XML Schema Documentation

Complex Type: ExercisePeriod

[Table of contents]

Super-types:	None
Sub-types:	None

Name	ExercisePeriod
Used by (from the same schema document)	Model Group OptionalEarlyTermination.model
Abstract	no
Documentation	This defines the time interval to the start of the exercise period, i.e. the earliest exercise date, and the frequency of subsequent exercise dates (if any).

XML Instance Representation

<...
id=" xsd:ID [0..1]">

<earliestExerciseDateTenor> Interval </earliestExerciseDateTenor> [1]

'The time interval to the first (and possibly only) exercise date in the exercise period.'

<exerciseFrequency> Interval </exerciseFrequency> [0..1]

'The frequency of subsequent exercise dates in the exercise period following the earliest exercise date. An interval of 1 day should be used to indicate an American style exercise period.'

</...>

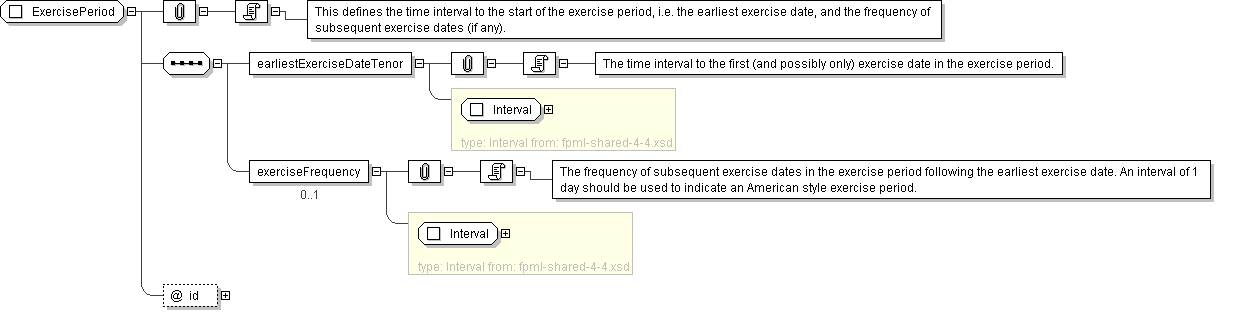

Diagram

Schema Component Representation

<xsd:complexType name="ExercisePeriod">

<xsd:sequence>

<xsd:element name="earliestExerciseDateTenor" type=" Interval "/>

<xsd:element name="exerciseFrequency" type=" Interval " minOccurs="0"/>

</xsd:sequence>

<xsd:attribute name="id" type=" xsd:ID "/>

</xsd:complexType>
