XML Schema Documentation

Complex Type: Notional

[Table of contents]

Super-types: None
Sub-types: None
Name Notional
Used by (from the same schema document) Complex Type Calculation
Abstract no
Documentation An type defining the notional amount or notional amount schedule associated with a swap stream. The notional schedule will be captured explicitly, specifying the dates that the notional changes and the outstanding notional amount that applies from that date. A parametric representation of the rules defining the notional step schedule can optionally be included.
XML Instance Representation
<...
id=" xsd:ID [0..1]">
<notionalStepSchedule> AmountSchedule </notionalStepSchedule> [1]

'The notional amount or notional amount schedule expressed as explicit outstanding notional amounts and dates. In the case of a schedule, the step dates may be subject to adjustment in accordance with any adjustments specified in calculationPeriodDatesAdjustments.'

<notionalStepParameters> NotionalStepRule </notionalStepParameters> [0..1]

'A parametric representation of the notional step schedule, i.e. parameters used to generate the notional schedule.'

</...>

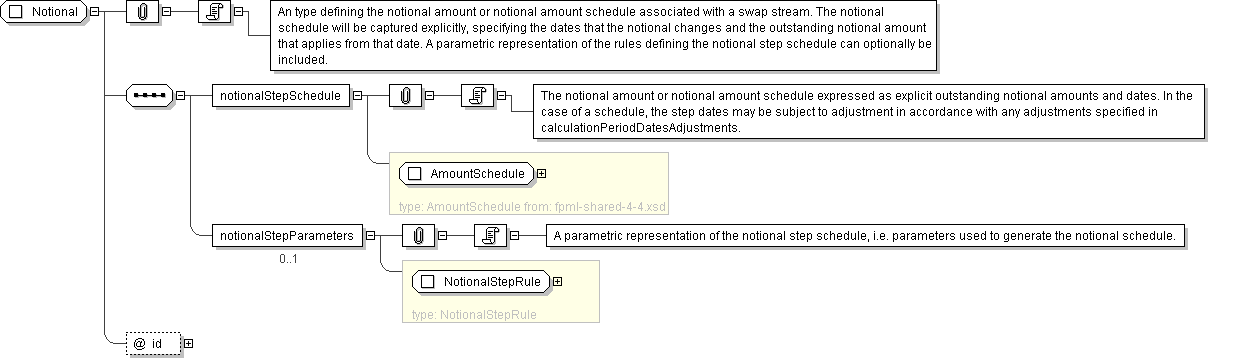

Diagram
Schema Component Representation
<xsd:complexType name="Notional">
<xsd:sequence>
<xsd:element name="notionalStepSchedule" type=" AmountSchedule "/>
<xsd:element name="notionalStepParameters" type=" NotionalStepRule " minOccurs="0"/>
</xsd:sequence>
<xsd:attribute name="id" type=" xsd:ID "/>
</xsd:complexType>
