XML Schema Documentation

Complex Type: DeprecatedEquityLeg

[Table of contents]

Super-types: ReturnSwapLeg < DeprecatedEquityLeg (by extension)
Sub-types: None
Name DeprecatedEquityLeg
Used by (from the same schema document) Element equityLeg
Abstract no
Documentation This type has been DEPRECATED. It will be removed in the next FpML major version. A type describing the equity leg of a return type swap.
XML Instance Representation
<...
legIdentifier=" xsd:ID [0..1]

'DEPRECATED This element will be renamed to id in the next major FpML version.'

"
>
<payerPartyReference> PartyOrAccountReference </payerPartyReference> [1]

'A reference to the party responsible for making the payments defined by this structure.'

<receiverPartyReference> PartyOrAccountReference </receiverPartyReference> [1]

'A reference to the party that receives the payments corresponding to this structure.'

<paymentFrequency> Interval </paymentFrequency> [0..1]

'DEPRECATED This element will be removed in the next FpML major version. Frequency at which this leg pays.'

<effectiveDate> AdjustableOrRelativeDate </effectiveDate> [1]

'Specifies the effective date of the equity leg of the swap. When defined in relation to a date specified somewhere else in the document (through the relativeDate component), this element will typically point to the effective date of the other leg of the swap.'

<terminationDate> AdjustableOrRelativeDate </terminationDate> [1]

'Specifies the termination date of the equity leg of the swap. When defined in relation to a date specified somewhere else in the document (through the relativeDate component), this element will typically point to the termination date of the other leg of the swap.'

<underlyer> Underlyer </underlyer> [1]

'Specifies the underlying component of the return type swap, which can be either one or many and consists in either equity, index or convertible bond component, or a combination of these.'

<valuation> DeprecatedEquityLegValuation </valuation> [1]

'Specifies the terms of the initial price of the return type swap and of the subsequent valuations of the equity underlyer.'

<notional> ReturnSwapNotional </notional> [1]

'Specifies the notional of a return type swap. When used in the equity leg, the definition will typically combine the actual amount (using the notional component defined by the FpML industry group) and the determination method. When used in the interest leg, the definition will typically point to the definition of the equity leg.'

<equityAmount> ReturnSwapAmount </equityAmount> [1]

'Specifies, in relation to each Equity Payment Date, the amount to which the Equity Payment Date relates. Unless otherwise specified, this term has the meaning defined in the ISDA 2002 Equity Derivatives Definitions.'

<return> Return </return> [1]

'Specifies the conditions under which dividend affecting the underlyer will be paid to the receiver of the equity amounts.'

<notionalAdjustments> NotionalAdjustmentEnum </notionalAdjustments> [1]

'Specifies the conditions that govern the adjustment to the number of units of the equity swap.'

<fxFeature> FxFeature </fxFeature> [0..1]

'A quanto or composite FX feature.'

</...>

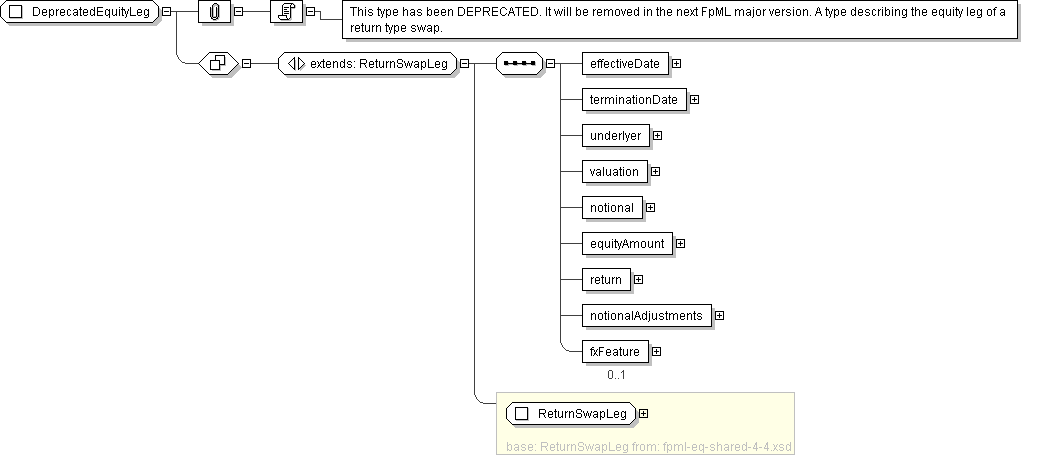

Diagram
Schema Component Representation
<xsd:complexType name="DeprecatedEquityLeg" deprecated="true" deprecatedReason="It has been made more generic as ReturnLeg to cover return swap type products.">
<xsd:complexContent>
<xsd:extension base=" ReturnSwapLeg ">
<xsd:sequence>
<xsd:element name="effectiveDate" type=" AdjustableOrRelativeDate "/>
<xsd:element name="terminationDate" type=" AdjustableOrRelativeDate "/>
<xsd:element name="underlyer" type=" Underlyer "/>
<xsd:element name="valuation" type=" DeprecatedEquityLegValuation "/>
<xsd:element name="notional" type=" ReturnSwapNotional "/>
<xsd:element name="equityAmount" type=" ReturnSwapAmount "/>
<xsd:element name="return" type=" Return "/>
<xsd:element name="notionalAdjustments" type=" NotionalAdjustmentEnum "/>
<xsd:element name="fxFeature" type=" FxFeature " minOccurs="0"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
