XML Schema Documentation

Super-types:	None
Sub-types:	None

Name	AdjustableDate2
Abstract	no
Documentation	A type that is different from AdjustableDate in two regards. First, date adjustments can be specified with either a dateAdjustments element or a reference to an existing dateAdjustments element. Second, it does not require the specification of date adjustments.

XML Instance Representation

<...
id=" xsd:ID [0..1]">

<unadjustedDate> IdentifiedDate </unadjustedDate> [1]

'A date subject to adjustment.'

Start Choice [0..1]

<dateAdjustments> BusinessDayAdjustments </dateAdjustments> [1]

'The business day convention and financial business centers used for adjusting the date if it would otherwise fall on a day that is not a business dat in the specified business centers.'

<dateAdjustmentsReference> BusinessDayAdjustmentsReference </dateAdjustmentsReference> [1]

'A pointer style reference to date adjustments defined elsewhere in the document.'

End Choice
</...>

Schema Component Representation

<xsd:complexType name="AdjustableDate2">

<xsd:sequence>

<xsd:element name="unadjustedDate" type=" IdentifiedDate "/>

<xsd:choice minOccurs="0">

<xsd:element name="dateAdjustments" type=" BusinessDayAdjustments "/>

<xsd:element name="dateAdjustmentsReference" type=" BusinessDayAdjustmentsReference "/>

</xsd:choice>

</xsd:sequence>

<xsd:attribute name="id" type=" xsd:ID "/>

</xsd:complexType>

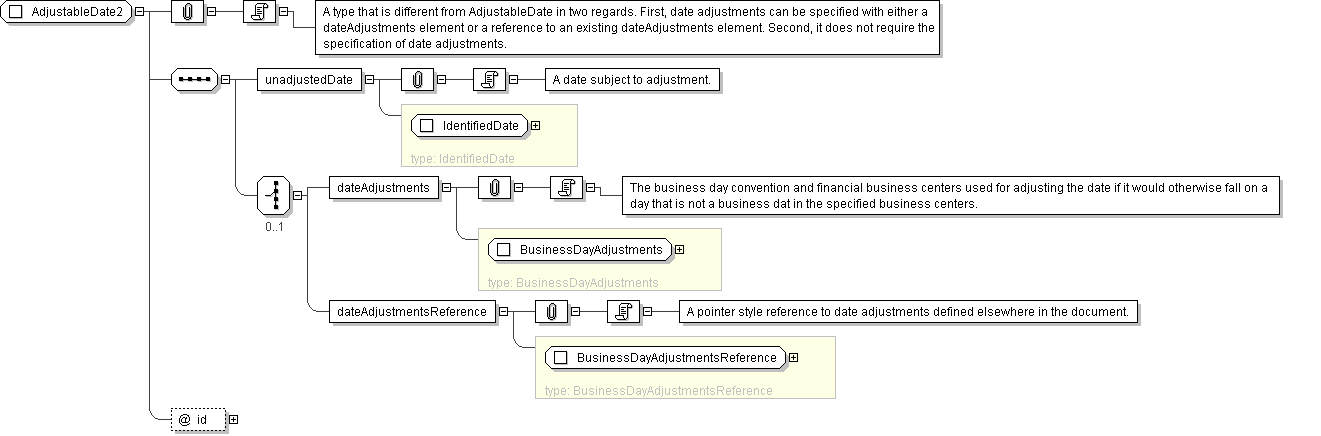

Generated by <oXygen/> XML Editor using a modified version of xs3p that adds schema diagrams and chunking support.

Complex Type: AdjustableDate2
