XML Schema Documentation

Super-types:	None
Sub-types:	None

Name	BusinessDayAdjustments
Used by (from the same schema document)	Complex Type AdjustableDate , Complex Type AdjustableDate2 , Complex Type AdjustableDates , Complex Type AdjustedRelativeDateOffset , Complex Type PeriodicDates
Abstract	no
Documentation	A type defining the business day convention and financial business centers used for adjusting any relevant date if it would otherwise fall on a day that is not a business day in the specified business centers.

XML Instance Representation

<...
id=" xsd:ID [0..1]">

<businessDayConvention> BusinessDayConventionEnum </businessDayConvention> [1]

'The convention for adjusting a date if it would otherwise fall on a day that is not a business day.'

Start Group: BusinessCentersOrReference.model [0..1]
Start Choice [1]

<businessCentersReference> BusinessCentersReference </businessCentersReference> [1]

'A pointer style reference to a set of financial business centers defined elsewhere in the document. This set of business centers is used to determine whether a particular day is a business day or not.'

<businessCenters> BusinessCenters </businessCenters> [1]

End Choice
End Group: BusinessCentersOrReference.model
</...>

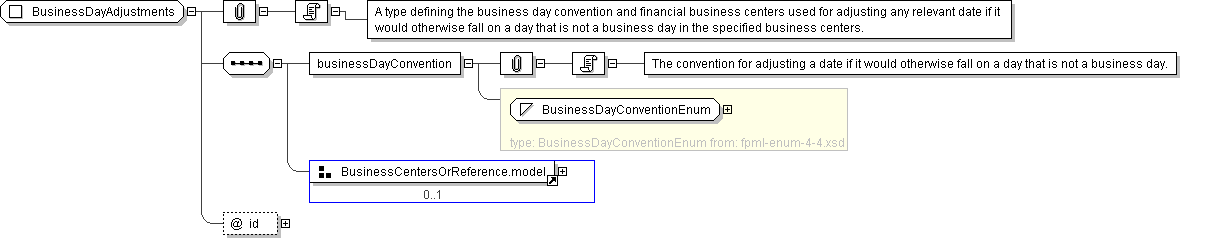

Schema Component Representation

<xsd:complexType name="BusinessDayAdjustments">

<xsd:sequence>

<xsd:element name="businessDayConvention" type=" BusinessDayConventionEnum "/>

<xsd:group ref=" BusinessCentersOrReference.model " minOccurs="0"/>

</xsd:sequence>

<xsd:attribute name="id" type=" xsd:ID "/>

</xsd:complexType>

Generated by <oXygen/> XML Editor using a modified version of xs3p that adds schema diagrams and chunking support.

Complex Type: BusinessDayAdjustments
