element <basket> (global)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
Basket
Content:
complex, 1 attribute, 7 elements
Subst.Gr:
may substitute for element underlyingAsset
Defined:
globally in fpml-asset-5-2.xsd; see XML source
Used:
never

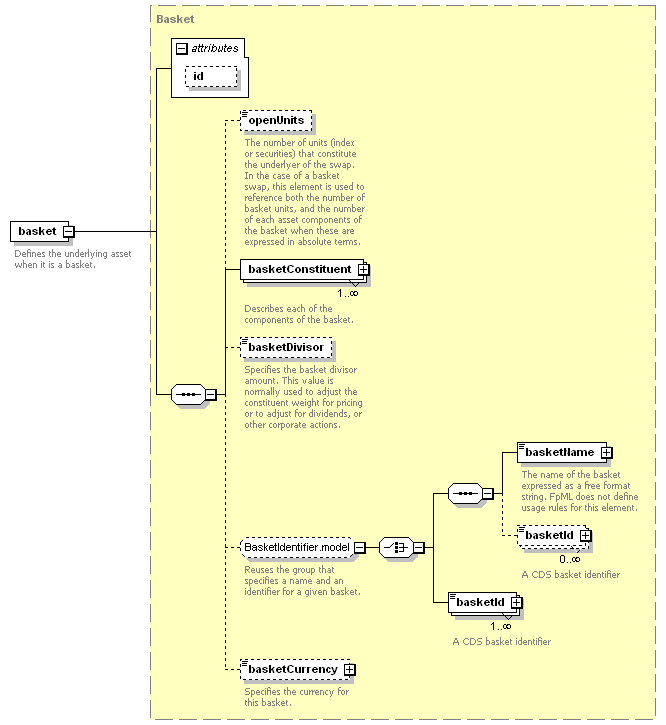

Content Model Diagram
XML Representation Summary
<basket

id
 =
 xsd:ID
    >

Content:
 openUnits?, basketConstituent+, basketDivisor?, ((basketName, basketId*) | basketId+)?, basketCurrency?
</basket>
Content model elements (7):
basketConstituent,
basketId (defined in BasketIdentifier.model group),
 basketId (defined in BasketIdentifier.model group),
openUnits (defined in Basket complexType)
May be included in elements by substitutions (5):
basketConstituent, point (in dataPoints),
Annotation
Defines the underlying asset when it is a basket.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="basket" substitutionGroup="underlyingAsset" type="Basket"/>
