group "CreditEntity.model"
Namespace:
Content:
Defined:
Includes:
definitions of 2 elements
Used:

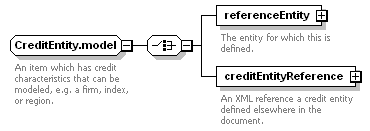

Content Model Diagram
Complex Content Model
referenceEntity | creditEntityReference
Content Model Elements (2):
creditEntityReference, referenceEntity (defined in CreditEntity.model group)
Known Usage Locations
Annotation
An item which has credit characteristics that can be modeled, e.g. a firm, index, or region.
XML Source (w/o annotations (3); see within schema source)
<xsd:group name="CreditEntity.model">
<xsd:choice>
<xsd:element name="referenceEntity" type="LegalEntity"/>
<xsd:element name="creditEntityReference" type="LegalEntityReference"/>
</xsd:choice>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 2/2)
creditEntityReference
Type:
LegalEntityReference, empty content
An XML reference a credit entity defined elsewhere in the document.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="creditEntityReference" type="LegalEntityReference"/>

referenceEntity
Type:
LegalEntity, complex content
The entity for which this is defined.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="referenceEntity" type="LegalEntity"/>
