element <optionExercise> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
OptionExercise
Content:
complex, 17 elements
Defined:
locally witnin Events.model group in fpml-business-events-5-2.xsd; see XML source

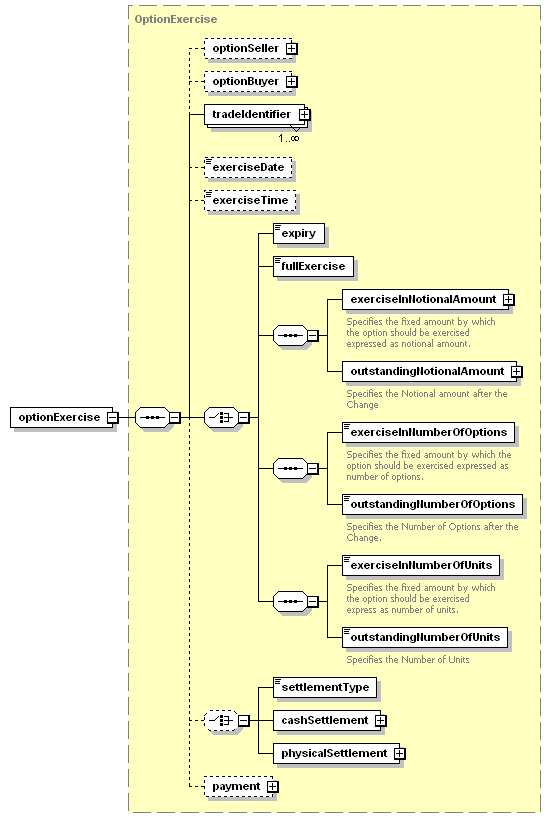

Content Model Diagram
XML Representation Summary
<optionExercise>

Content:
 optionSeller?, optionBuyer?, tradeIdentifier+, exerciseDate?, exerciseTime?, (expiry | fullExercise | (exerciseInNotionalAmount, outstandingNotionalAmount) | (exerciseInNumberOfOptions, outstandingNumberOfOptions) | (exerciseInNumberOfUnits, outstandingNumberOfUnits)), (settlementType | cashSettlement | physicalSettlement)?, payment?
</optionExercise>
Content model elements (17):
cashSettlement (in optionExercise), optionSeller,
Included in content model of elements (22):
allegedEvent, assertedEvent, clearingConfirmed, clearingRefused, confirmationAgreed, confirmationDisputed, consentGranted, consentRefused, executionAdvice, executionAdviceRetracted, executionNotification, executionRetracted, optionExpirationNotification, proposedMatch, requestClearing, requestClearingRetracted, requestConfirmation, requestConfirmationRetracted, requestConsent, requestConsentRetracted, requestExecution, requestExecutionRetracted
XML Source (see within schema source)
<xsd:element name="optionExercise" type="OptionExercise"/>
