element <exercise> (local)
Namespace:
Type:
Content:
complex, 10 elements
Defined:

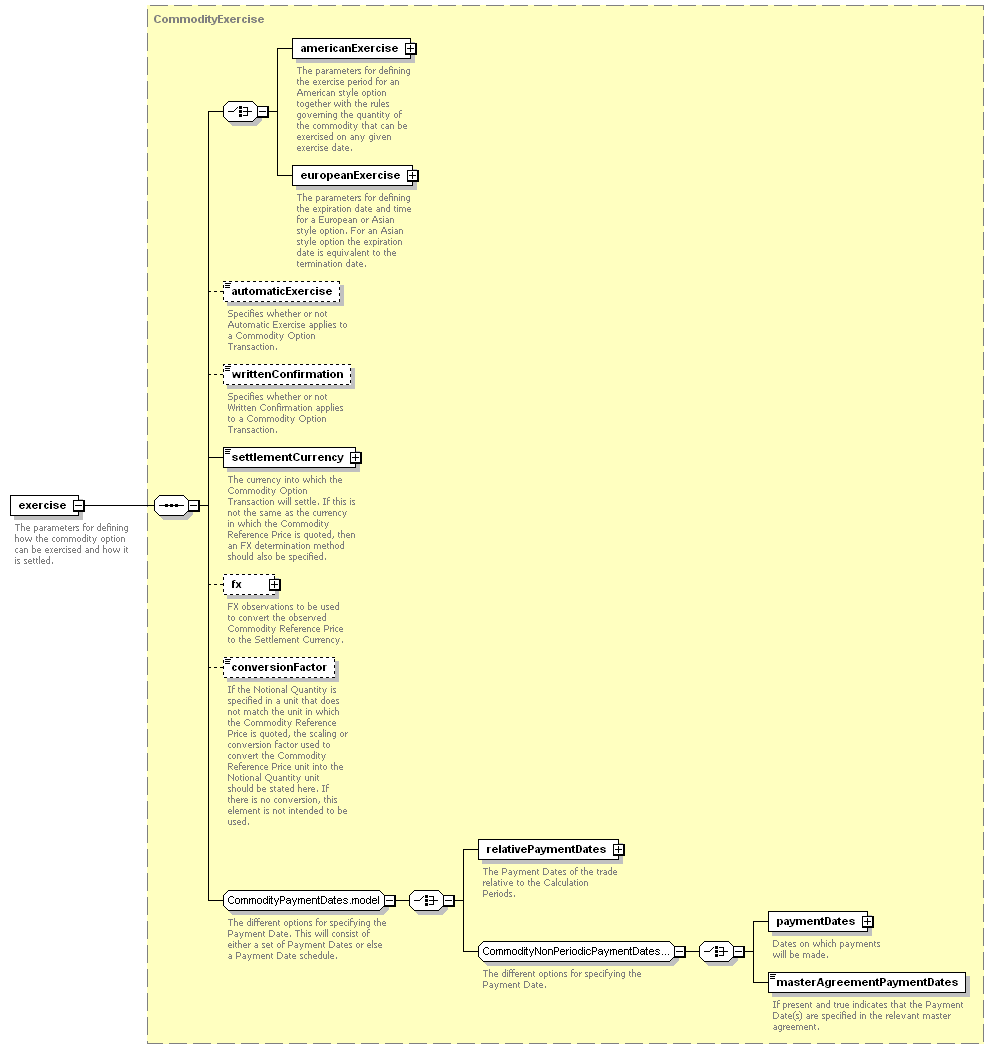

Content Model Diagram
XML Representation Summary
<exercise>

Content:
(americanExercise | europeanExercise), automaticExercise?, writtenConfirmation?, settlementCurrency, fx?, conversionFactor?, (relativePaymentDates | paymentDates | masterAgreementPaymentDates)
</exercise>
Content model elements (10):
americanExercise (in exercise in commodityOption),
automaticExercise (in exercise in commodityOption),
conversionFactor (in exercise in commodityOption),
europeanExercise (in exercise in commodityOption),
fx (in exercise in commodityOption),
masterAgreementPaymentDates,
paymentDates (defined in CommodityNonPeriodicPaymentDates.model group),
relativePaymentDates,
settlementCurrency (in exercise in commodityOption),
writtenConfirmation (in exercise in commodityOption)
Included in content model of elements (1):
commodityOption
Annotation
The parameters for defining how the commodity option can be exercised and how it is settled.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="exercise" type="CommodityExercise"/>
