element <interestLeg> (global)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
InterestLeg
Content:
complex, 1 attribute, 12 elements
Subst.Gr:
may substitute for element returnSwapLeg
Defined:
globally in fpml-eq-shared-5-2.xsd; see XML source
Used:
never

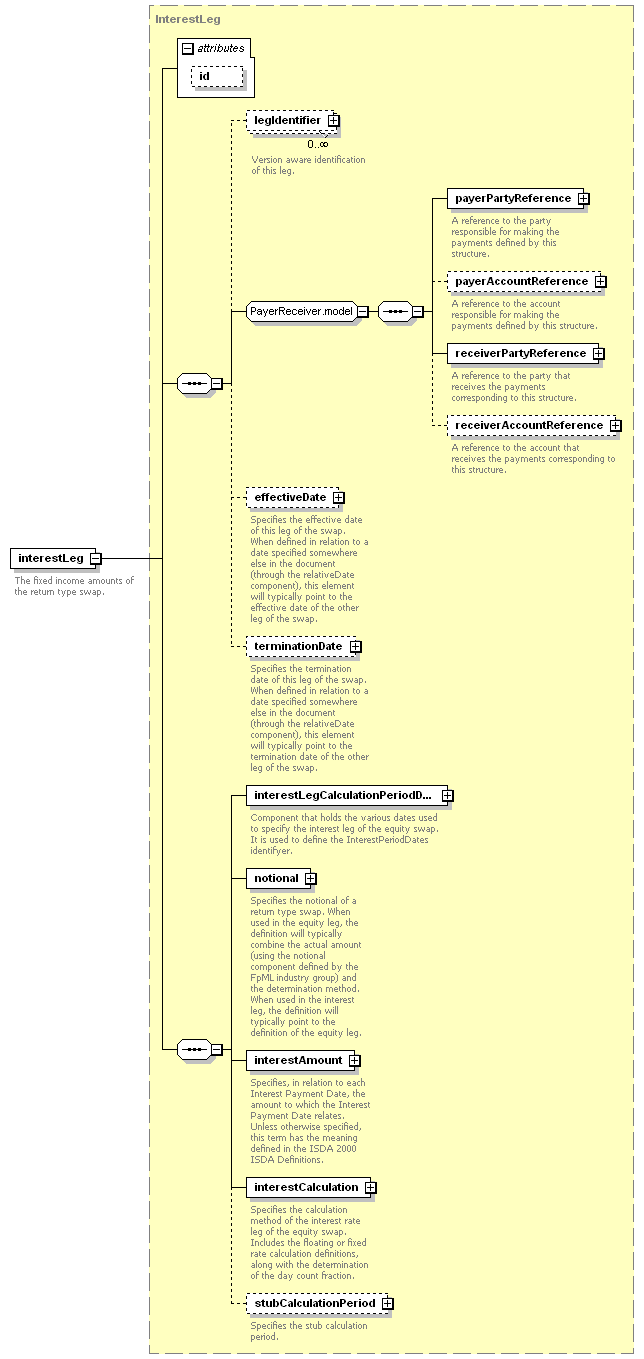

Content Model Diagram
XML Representation Summary
<interestLeg

id
 =
 xsd:ID
    >

Content:
 legIdentifier*, payerPartyReference, payerAccountReference?, receiverPartyReference, receiverAccountReference?, effectiveDate?, terminationDate?, interestLegCalculationPeriodDates, notional, interestAmount, interestCalculation, stubCalculationPeriod?
</interestLeg>
Content model elements (12):
effectiveDate (defined in DirectionalLeg complexType), payerAccountReference,
terminationDate (defined in DirectionalLeg complexType)
May be included in elements by substitutions (2):
equitySwapTransactionSupplement, returnSwap
Annotation
The fixed income amounts of the return type swap.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="interestLeg" substitutionGroup="returnSwapLeg" type="InterestLeg"/>
