group "CorrelationAndOptionalSequence.model"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
2 elements
Defined:
globally in fpml-msg-5-2.xsd; see XML source
Used:
at 4 locations

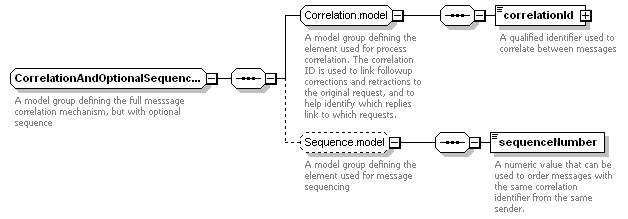

Content Model Diagram
Complex Content Model
correlationId, sequenceNumber?
Content Model Elements (2):
correlationId, sequenceNumber (defined in Sequence.model group)
Known Usage Locations
Annotation
A model group defining the full messsage correlation mechanism, but with optional sequence
XML Source (w/o annotations (1); see within schema source)
<xsd:group name="CorrelationAndOptionalSequence.model">
<xsd:sequence>
<xsd:group ref="Correlation.model"/>
<xsd:group minOccurs="0" ref="Sequence.model"/>
</xsd:sequence>
</xsd:group>
