element <confirmationAgreed> (global)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
ConfirmationAgreed
Content:
complex, 3 attributes, 19 elements
Defined:
globally in fpml-confirmation-processes-5-3.xsd; see XML source
Used:
never

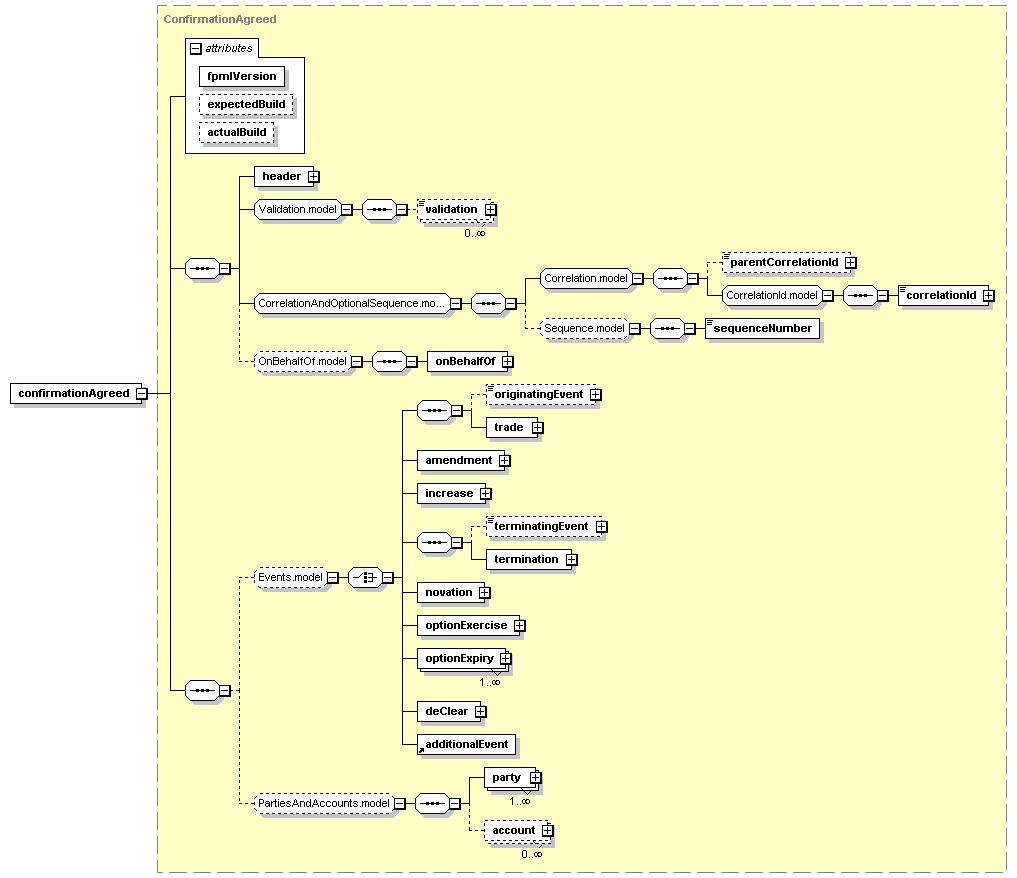

Content Model Diagram
XML Representation Summary
<confirmationAgreed

fpmlVersion
 =
 xsd:token
expectedBuild
 =
 xsd:positiveInteger
actualBuild
 =
 "2"
    >

Content:
 header, validation*, parentCorrelationId?, correlationId, sequenceNumber?, onBehalfOf?, ((originatingEvent?, trade) | amendment | increase | (terminatingEvent?, termination) | novation | optionExercise | optionExpiry+ | deClear | additionalEvent)?, (party+, account*)?
</confirmationAgreed>
Content model elements (19):
account,
header (defined in ResponseMessage complexType),
onBehalfOf (defined in OnBehalfOf.model group),
 optionExpiry (defined in Events.model group),
originatingEvent (defined in Events.model group),
sequenceNumber (defined in Sequence.model group),
terminatingEvent (defined in Events.model group),
trade (defined in Events.model group),
Annotation
The confirmationAgreed message is sent when the matching process returns a proposed match (trade or event) and the Confirmation Requester agrees with it.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="confirmationAgreed" type="ConfirmationAgreed"/>
